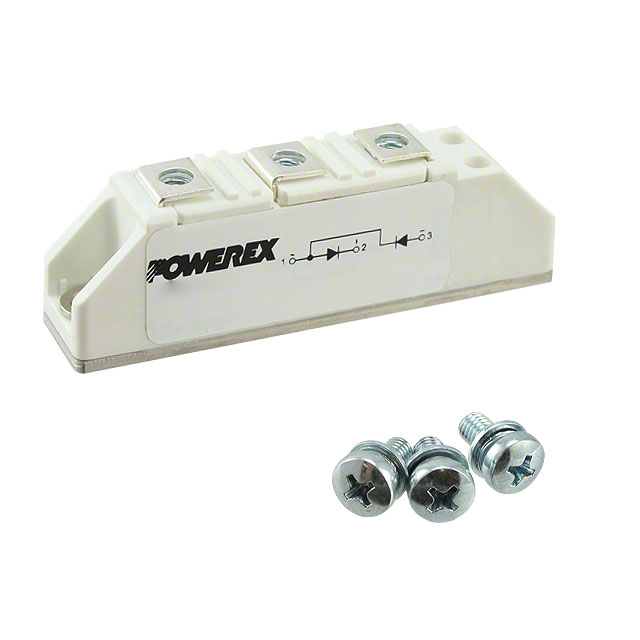

CD411299B

Obsolete

Powerex Inc.

DIODE MOD GP 1200V 100A POWRBLOK

Search across all available documentation for this part.

Obsolete

Powerex Inc.

DIODE MOD GP 1200V 100A POWRBLOK

Technical Specifications

Parameters and characteristics for this part

Specification	CD411299B

Current - Average Rectified (Io) (per Diode)	100 A
Current - Reverse Leakage @ Vr	10 mA
Diode Configuration	1 Pair Series Connection
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	POW-R-BLOK™ Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	POW-R-BLOK™ Module
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV

Part	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Diode Configuration	Current - Reverse Leakage @ Vr	Mounting Type	Speed	Speed	Current - Average Rectified (Io) (per Diode)	Supplier Device Package
Powerex Inc. CD411299B	Standard	1.2 kV	150 °C	-40 °C	POW-R-BLOK™ Module	1 Pair Series Connection	10 mA	Chassis Mount	Standard Recovery >500ns	200 mA	100 A	POW-R-BLOK™ Module
Powerex Inc. CD411299C	Standard	1.2 kV			Module	1 Pair Series Connection		Chassis Mount	Standard Recovery >500ns	200 mA	100 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode Array 1 Pair Series Connection 1200 V 100A Chassis Mount POW-R-BLOK™ Module
