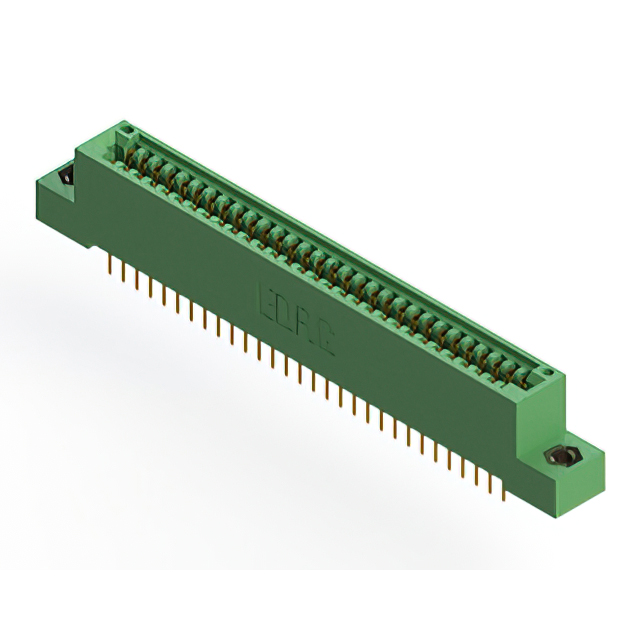

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 60 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-060-524-207
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 60 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-060-524-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 60 |
| Number of Positions/Bay/Row [custom] | 30 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
345-060 Series
...
| Part | Mounting Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Pitch [x] | Pitch [x] | Number of Positions | Number of Positions/Bay/Row [custom] | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Color | Read Out | Contact Finish | Number of Rows | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Contact Type | Flange Feature | Termination | Features | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 60 | 30 | 2 | 10 Áin | 0.25 Ám | Green | Dual | Gold | 2 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Solder | |||||
EDAC Inc. | Through Hole | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 60 | 60 | 1 | 10 Áin | 0.25 Ám | Green | Single | Gold | 1 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Cantilever | 4-40 Threaded Insert Top Mount Opening | Solder | Card Guides | ||||
EDAC Inc. | Through Hole | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 60 | 60 | 1 | 10 Áin | 0.25 Ám | Green | Single | Gold | 1 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Cantilever | Flush Mount Top Opening Unthreaded | Wire Wrap | 3.25 mm | 0.128 " | |||
EDAC Inc. | Through Hole | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 60 | 30 | 2 | 10 Áin | 0.25 Ám | Green | Dual | Gold | 2 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Side Mount Opening Unthreaded | Wire Wrap | 3.25 mm | 0.128 in | |||
EDAC Inc. | Through Hole | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 60 | 60 | 1 | 10 Áin | 0.25 Ám | Green | Single | Gold | 1 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Wire Wrap | |||||
EDAC Inc. | Through Hole Right Angle | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 60 | 30 | 2 | 10 Áin | 0.25 Ám | Green | Dual | Gold | 2 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | M3 Threaded Insert Top Mount Opening | Solder | |||||
EDAC Inc. | Through Hole | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 60 | 30 | 2 | 10 Áin | 0.25 Ám | Green | Dual | Gold | 2 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Side Mount Opening Unthreaded | Wire Wrap | 3.25 mm | 0.128 in | |||
EDAC Inc. | Through Hole | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 60 | 30 | 2 | 10 Áin | 0.25 Ám | Green | Dual | Gold | 2 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | 4-40 Threaded Insert Top Mount Opening | Solder | Card Guides | ||||
EDAC Inc. | Board Edge Straddle Mount | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 60 | 30 | 2 | 10 Áin | 0.25 Ám | Green | Dual | Gold | 2 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Card Extender | ||||
EDAC Inc. | Through Hole Right Angle | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 60 | 60 | 1 | 10 Áin | 0.25 Ám | Green | Single | Gold | 1 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Cantilever | Floating Bobbin Top Mount Opening | Solder | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-060 Series
60 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
