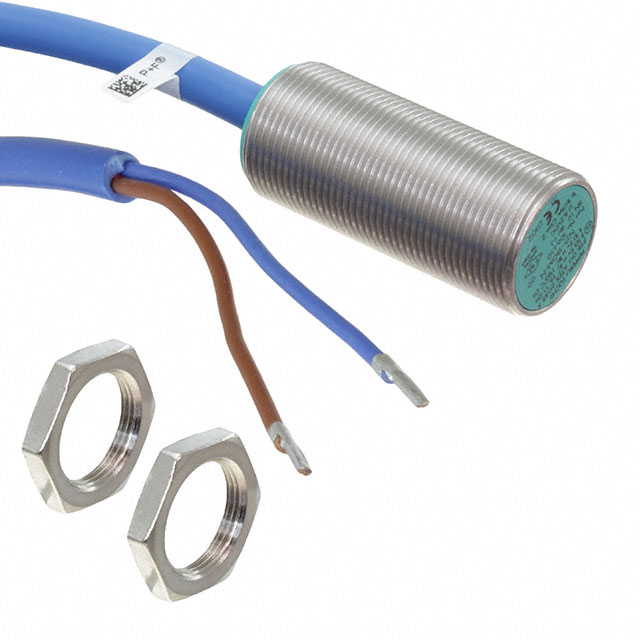

NJ4-12GM-N

Active

PEPPERL+FUCHS

INDUCTIVE SEN 4MM NAMUR

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 4MM NAMUR

Technical Specifications

Parameters and characteristics for this part

Specification	NJ4-12GM-N

Indicator [custom]	No Indicator
Ingress Protection	IP67
Material - Body	Stainless Steel
Operating Temperature [custom]	100 °C, -25 °C
Output Type	SCR-NC, 2-Wire
Package / Case	Cylinder, Threaded - M12
Sensing Distance	4 mm
Sensing Distance	0.157 in
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply	8.2 V

Part	Termination Style	Sensor Type	Output Type	Voltage - Supply	Indicator [custom]	Operating Temperature [custom]	Sensing Distance	Sensing Distance	Shielding	Material - Body	Package / Case	Ingress Protection	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]
PEPPERL+FUCHS NJ4-12GM-N	Cable	Inductive	SCR-NC 2-Wire	8.2 V	No Indicator	-25 °C 100 °C	4 mm	0.157 in	Unshielded	Stainless Steel	Cylinder Threaded - M12	IP67
PEPPERL+FUCHS NJ4-12GM40-E2-V1	Connector	Inductive	PNP-NO 3-Wire		LED		4 mm	0.157 in	Unshielded	Stainless Steel	Cylinder Threaded - M12	IP67	10 VDC	60 V	70 °C	-25 °C
PEPPERL+FUCHS NJ4-12GM50-WS-V12	Connector	Inductive	SCR-NO 2-Wire		No Indicator		4 mm	0.157 in	Unshielded	Stainless Steel	Cylinder Threaded - M12	IP67	20 VDC	253 VDC	70 °C	-25 °C
PEPPERL+FUCHS NJ4-12GM50-WS	Cable	Inductive	SCR-NO 2-Wire		LED		4 mm	0.157 in	Unshielded	Stainless Steel	Cylinder Threaded - M12	IP67	20 VDC	253 VDC	70 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 4MM NAMUR
