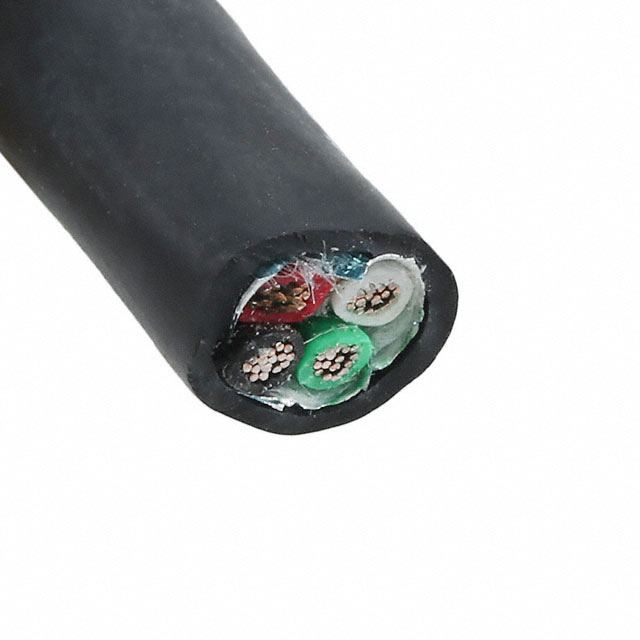

25384 BK005
ActiveALPHA WIRE
CABLE 4COND 18AWG BLK SHLD 100'
Deep-Dive with AI
Search across all available documentation for this part.
25384 BK005
ActiveALPHA WIRE
CABLE 4COND 18AWG BLK SHLD 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 25384 BK005 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 16 |
| Conductor Strand [custom] | 30 AWG |
| Features | Rip Cord, Biological Compatibility, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.263 in |
| Jacket (Insulation) Diameter [diameter] | 6.68 mm |
| Jacket (Insulation) Material | Polyurethane (PU) |
| Jacket Color | Black |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -30 ░C |
| Ratings | UL Style 20668, ISO 10993 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 565.28 | |
| 2 | $ 537.39 | |||
| 3 | $ 521.61 | |||
| 5 | $ 502.26 | |||
| 7 | $ 489.82 | |||
| 10 | $ 476.92 | |||
| 25 | $ 475.72 | |||
Description
General part information
25384 Series
4 Conductor Multi-Conductor Cable Black 18 AWG Foil 100.0' (30.5m)
