89073.35.01

Unknown

Prysmian Group

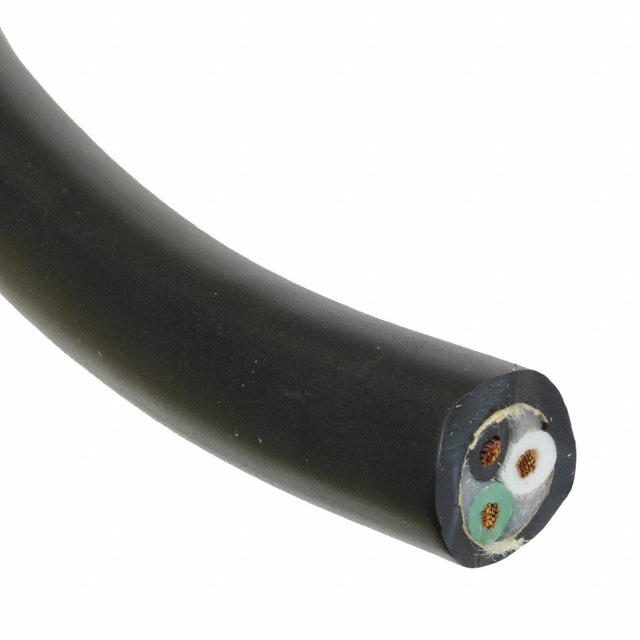

CABLE 3COND 14AWG BLACK 50'

Search across all available documentation for this part.

Unknown

Prysmian Group

CABLE 3COND 14AWG BLACK 50'

Technical Specifications

Parameters and characteristics for this part

Specification	89073.35.01

Cable Type	Multi-Conductor
Conductor Insulation	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare
Conductor Strand [custom]	41
Conductor Strand [custom]	30 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.541 in
Jacket (Insulation) Diameter [diameter]	13.74 mm
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	1.143 mm
Jacket (Insulation) Thickness	0.045 in
Jacket Color	Black
Length	15.24 m, 76.2 m, 3.05 m
Length	3000 ", 10 ft
Length [x]	50 ft, 25 ft
Length [x]	7.62 m
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-50 °C
Usage	Cord and Cordset
Voltage	600 V
Wire Gauge	13.5 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length [x]	Jacket Color	Features	Length	Jacket (Insulation) Material	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Cable Type	Length [x]	Voltage	Conductor Insulation	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Prysmian Group 89073.35.01	1.143 mm	0.045 in	3.05 m 15.24 m 76.2 m	25 ft 50 ft	Black	Oil Resistant	10 ft 3000 "	Thermoplastic Elastomer (TPE)	Cord and Cordset	41	30 AWG	3	Multi-Conductor	7.62 m	600 V	Thermoplastic Elastomer (TPE)	13.5 AWG	-50 °C	105 ░C	Copper Bare	0.541 in	13.74 mm
Prysmian Group 89073.46.05	1.143 mm	0.045 in			Yellow	Oil Resistant		Thermoplastic Elastomer (TPE)		41	30 AWG	3	Multi-Conductor		600 V	Thermoplastic Elastomer (TPE)	13.5 AWG	-50 °C	105 ░C	Copper Annealed Bare	0.541 in	13.74 mm
Prysmian Group 89073.41.01	1.143 mm	0.045 in	304.8 m		Black	Oil Resistant	1000 ft	Thermoplastic Elastomer (TPE)		41	30 AWG	3	Multi-Conductor		600 V	Thermoplastic Elastomer (TPE)	13.5 AWG	-50 °C	105 ░C	Copper Annealed Bare	0.541 in	13.74 mm
Prysmian Group 89073.35.05	1.143 mm	0.045 in	15.24 m 76.2 m	50 ft 100 ft	Yellow	Oil Resistant	3000 "	Thermoplastic Elastomer (TPE)	Cord and Cordset	41	30 AWG	3	Multi-Conductor	30.5 m	600 V	Thermoplastic Elastomer (TPE)	13.5 AWG	-50 °C	105 ░C	Copper Bare	0.541 in	13.74 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 1.54

General part information

3 Conductor Multi-Conductor Cable Black 14 AWG 50.00' (15.24m)

Technical documentation and resources

No documents available
