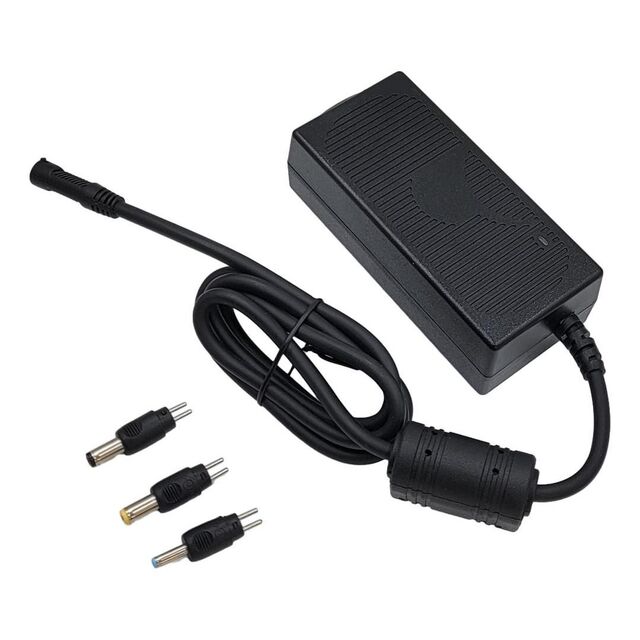

RR9KE5410T00-IMR6B

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 12V 65W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RR9KE5410T00-IMR6B

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 12V 65W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RR9KE5410T00-IMR6B

Applications	ITE (Commercial), Medical
Approval Agency	VCCI, S-Mark, UKRSepro, PSE, LPS, BSMI, FCC, EAC, CB, CE, ETL, cETLus
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	5.41 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop, Wall Mount
Input Connector	IEC 320-C8, Multi-Blade (Sold Separately)
Input Type	Cord, Multi-Blade
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Power (Watts)	65 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	53.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [z]	36.6 mm
Size / Dimension [z]	1.44 "
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

RR9KE5410 Series

Part	Voltage - Output	Input Connector	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length	Power (Watts)	Applications	Current - Output (Max) [Max]	Form	No Load Power Consumption [Max]	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Region Utilized	Output Connector	Input Type	Approval Agency	Polarization	Output Connector [diameter]	Output Connector [x]	Standard Number	Output Connector [z]
GlobTek, Inc. RR9KE5410T00-IMR6B	12 V	IEC 320-C8 Multi-Blade (Sold Separately)	36.6 mm	4.63 in	53.5 mm	1.44 "	117.5 mm	2.11 in	90 VAC	264 VAC	1.2 m	47.2 in	65 W	ITE (Commercial) Medical	5.41 A	Desktop Wall Mount	150 mW	CoC Tier 2 Level VI	-20 C	40 °C	International	1.3mm x 3.5mm Barrel Plug Kit	Cord Multi-Blade	BSMI CB CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro VCCI
GlobTek, Inc. RR9KE5410LCP-IMR6B	12 V	IEC 320-C8 Multi-Blade (Sold Separately)	36.6 mm	4.63 in	53.5 mm	1.44 "	117.5 mm	2.11 in	90 VAC	264 VAC	1.2 m	47.2 in	65 W	ITE (Commercial) Medical	5.41 A	Desktop Wall Mount	150 mW	CoC Tier 2 Level VI	-20 C	40 °C	International	Barrel Plug	Cord Multi-Blade	BSMI CB CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro VCCI	Positive Center	2.5 mm 5.5 mm	11 mm
GlobTek, Inc. RR9KE5410CCP-IMR6B	12 V	IEC 320-C8 Multi-Blade (Sold Separately)	36.6 mm	4.63 in	53.5 mm	1.44 "	117.5 mm	2.11 in	90 VAC	264 VAC	1.2 m	47.2 in	65 W	ITE (Commercial) Medical	5.41 A	Desktop Wall Mount	150 mW	CoC Tier 2 Level VI	-20 C	40 °C	International	Barrel Plug	Cord Multi-Blade	BSMI CB CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro VCCI	Positive Center	2.1 mm 5.5 mm		60335-1 60601-1 60950-1 62368-1	11 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.00
		5	$ 27.57
		10	$ 27.14
		30	$ 25.85
		60	$ 24.98
		120	$ 23.26
		270	$ 22.92

Description

General part information

RR9KE5410 Series

12V 65 W AC/DC External Desktop, Wall Mount (Class II) Adapter Cord, Multi-Blade (Sold Separately) Input
