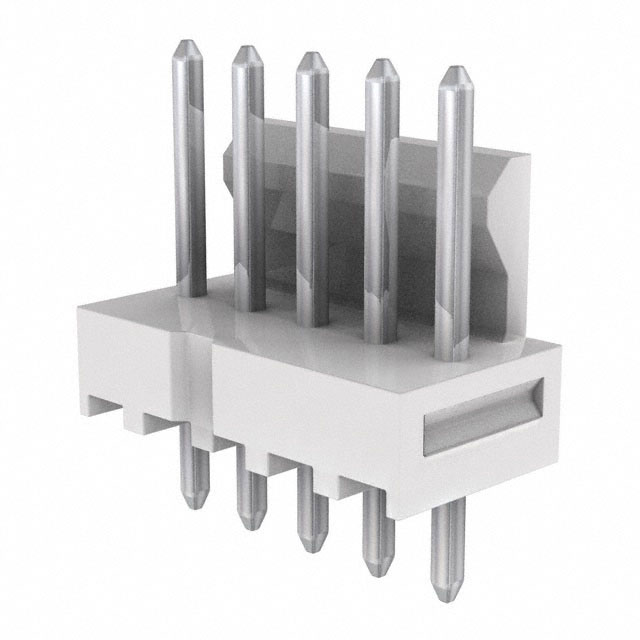

0022233050

Active

Molex

CONN HEADER VERT 5POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0022233050

Active

Molex

CONN HEADER VERT 5POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022233050

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	60 Áin
Contact Finish Thickness - Mating	1.52 Ám
Contact Finish Thickness - Post	60 µin
Contact Finish Thickness - Post	1.52 µm
Contact Length - Mating [custom]	6.6 mm
Contact Length - Mating [custom]	0.26 in
Contact Length - Post	4.45 mm
Contact Length - Post	0.175 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height [z]	0.322 "
Insulation Height [z]	8.18 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	12.7 mm
Overall Contact Length	0.5 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Board, Cable
Termination	Solder

002223 Series

...

Part	Overall Contact Length	Overall Contact Length	Termination	Material Flammability Rating	Number of Positions	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Fastening Type	Connector Type	Number of Rows	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Contact Type	Applications	Shrouding	Insulation Height [z]	Insulation Height [z]	Style	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Insulation Color	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Length - Mating [custom]	Contact Length - Mating [custom]
Molex 0022232118	14.22 mm	0.56 in	Solder	UL94 V-0	11	Brass	60 Áin	1.52 Ám	All	0.1 in	2.54 mm	Friction Lock	Header	1	Through Hole	7.49 mm	0.295 in	Tin	Male Pin	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	0.322 "	8.18 mm	Board to Board Cable	3.56 mm	0.14 in	60 µin	1.52 µm	Nylon Polyamide (PA)	White	Square
Molex 0022232038	14.22 mm	0.56 in	Solder	UL94 V-0		Brass	60 Áin	1.52 Ám	All	0.1 in	2.54 mm	Friction Lock	Header	1	Through Hole	7.49 mm	0.295 in	Tin	Male Pin	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	0.322 "	8.18 mm	Board to Board Cable	3.56 mm	0.14 in	60 µin	1.52 µm	Nylon Polyamide (PA)	White	Square
Molex 0022233050	12.7 mm	0.5 "	Solder	UL94 V-0		Brass	60 Áin	1.52 Ám	All	0.1 in	2.54 mm	Friction Lock	Header	1	Through Hole			Tin	Male Pin	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	0.322 "	8.18 mm	Board to Board Cable			60 µin	1.52 µm	Nylon Polyamide (PA)	White	Square	4.45 mm	0.175 in	6.6 mm	0.26 in
Molex 0022232021	14.22 mm	0.56 in	Solder	UL94 V-0	2	Brass	100 çin	2.54 çm	All	0.1 in	2.54 mm	Friction Lock	Header	1	Through Hole	7.49 mm	0.295 in	Tin	Male Pin	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	0.322 "	8.18 mm	Board to Board Cable	3.56 mm	0.14 in	100 µin	2.54 µm	Nylon Polyamide (PA)	White	Square
Molex 0022232211	14.22 mm	0.56 in	Solder	UL94 V-0	21	Brass	100 çin	2.54 çm	All	0.1 in	2.54 mm	Friction Lock	Header	1	Through Hole	7.49 mm	0.295 in	Tin	Male Pin	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	0.322 "	8.18 mm	Board to Board Cable	3.56 mm	0.14 in	100 µin	2.54 µm	Nylon Polyamide (PA)	White	Square
Molex 0022232043	13.46 mm	0.53 in	Solder	UL94 V-0	4	Brass	60 Áin	1.52 Ám	All	0.1 in	2.54 mm	Friction Lock	Header	1	Through Hole			Tin	Male Pin	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	0.322 "	8.18 mm	Board to Board Cable			60 µin	1.52 µm	Nylon Polyamide (PA)	White	Square	3.68 mm	0.145 in	6.6 mm	0.26 in
Molex 0022232101	14.22 mm	0.56 in	Solder	UL94 V-0	10	Brass	100 çin	2.54 çm	All	0.1 in	2.54 mm	Friction Lock	Header	1	Through Hole	7.49 mm	0.295 in	Tin	Male Pin	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	0.322 "	8.18 mm	Board to Board Cable	3.56 mm	0.14 in	100 µin	2.54 µm	Nylon Polyamide (PA)	White	Square
Molex 0022232041	14.22 mm	0.56 in	Solder	UL94 V-0	4	Brass	100 çin	2.54 çm	All	0.1 in	2.54 mm	Friction Lock	Header	1	Through Hole	7.49 mm	0.295 in	Tin	Male Pin	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	0.322 "	8.18 mm	Board to Board Cable	3.56 mm	0.14 in	100 µin	2.54 µm	Nylon Polyamide (PA)	White	Square
Molex 0022232061	14.22 mm	0.56 in	Solder	UL94 V-0	6	Brass	100 çin	2.54 çm	All	0.1 in	2.54 mm	Friction Lock	Header	1	Through Hole	7.49 mm	0.295 in	Tin	Male Pin	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	0.322 "	8.18 mm	Board to Board Cable	3.56 mm	0.14 in	100 µin	2.54 µm	Nylon Polyamide (PA)	White	Square
Molex 0022232261	14.22 mm	0.56 in	Solder	UL94 V-0	26	Brass	100 çin	2.54 çm	All	0.1 in	2.54 mm	Friction Lock	Header	1	Through Hole	7.49 mm	0.295 in	Tin	Male Pin	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	0.322 "	8.18 mm	Board to Board Cable	3.56 mm	0.14 in	100 µin	2.54 µm	Nylon Polyamide (PA)	White	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.31
		10	$ 0.26
		100	$ 0.20
		1000	$ 0.17

Description

General part information

002223 Series

Connector Header Through Hole 5 position 0.100" (2.54mm)
