0082286161

Obsolete

Molex

CBL RIBN 16COND 0.1 GRAY 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

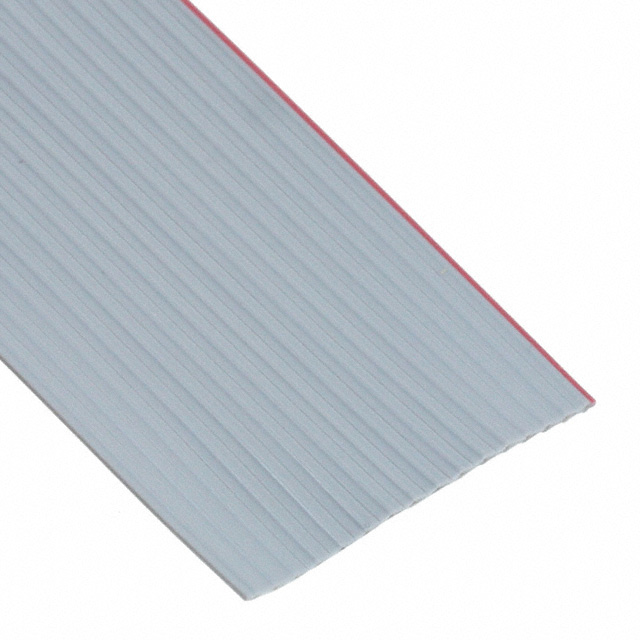

0082286161

Obsolete

Molex

CBL RIBN 16COND 0.1 GRAY 100'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0082286161

Cable Type	Flat Cable
Conductor Material	Copper, Topcoat
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	16
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Ratings	CSA LL61126, UL Style 2651
Ribbon Thickness [custom]	1.04 mm
Ribbon Thickness [custom]	0.041 "
Ribbon Width	1.6 in
Ribbon Width	40.64 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

008228 Series

Part	Ratings	First Conductor Mark	Cable Type	Shielding	Voltage	Length [x]	Length [x]	Ribbon Thickness [custom]	Ribbon Thickness [custom]	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Conductor Material	Ribbon Width	Ribbon Width	Features	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Pitch [x]	Pitch [x]	Number of Conductors	Ribbon Width [custom]	Ribbon Width [custom]	Insulation Resistance	Ribbon Thickness	Ribbon Thickness	Length	Length	Ribbon Width [x]	Ribbon Width [x]	Ribbon Width [y]	Ribbon Width [y]
Molex 0082286041	UL E61522	Black	Flat Cable	Unshielded	300 V	100 ft	30.48 m	1.04 mm	0.041 "	7	36 AWG	28 AWG	Copper Topcoat	10.2 mm	0.402 in	Zippable	Gray	-20 C	105 ░C	Poly-Vinyl Chloride (PVC)	2.54 mm	0.1 in	4
Molex 82-28-3044	UL E61522	Red	Flat Cable	Unshielded	150 V	10 ft	3.05 m			7	36 AWG	28 AWG	Copper Tinned			Zippable	Gray	-20 C	105 ░C	Poly-Vinyl Chloride (PVC)	1 mm	0.039 in	44	43.99 mm	1.732 in	10 MOhms	0.031 in	0.79 mm
Molex 0082286161	CSA LL61126 UL Style 2651	Red	Flat Cable	Unshielded	300 V	100 ft	30.48 m	1.04 mm	0.041 "	7	36 AWG	28 AWG	Copper Topcoat	40.64 mm	1.6 in	Zippable	Gray	-20 C	105 ░C	Poly-Vinyl Chloride (PVC)	2.54 mm	0.1 in	16			10 MOhms
Molex 82-28-3050	UL E61522	Red	Flat Cable	Unshielded	150 V	10 ft	3.05 m			7	36 AWG	28 AWG	Copper Tinned			Zippable	Gray	-20 C	105 ░C	Poly-Vinyl Chloride (PVC)	1 mm	0.039 in	50			10 MOhms	0.031 in	0.79 mm	7.62 m 15.24 m	25 ft 50 ft	1.969 in	50.01 mm
Molex 0082285724	UL E61522	Black	Flat Cable	Unshielded	300 V	100 ft	30.48 m			7	36 AWG	28 AWG	Copper Tinned				Gray	-20 C	105 ░C	Poly-Vinyl Chloride (PVC)	1.27 mm	0.05 in	24				0.035 in	0.89 mm					1.2 in	30.48 mm
Molex 0082283044	UL E61522	Red	Flat Cable	Unshielded	150 V	100 ft	30.48 m			7	36 AWG	28 AWG	Copper Tinned			Zippable	Gray	-20 C	105 ░C	Poly-Vinyl Chloride (PVC)	1 mm	0.039 in	44	43.99 mm	1.732 in	10 MOhms	0.031 in	0.79 mm
Molex 0082285526
Molex 0082286251	UL E61522	Black	Flat Cable	Unshielded	300 V	100 ft	30.48 m	1.04 mm	0.041 "	7	36 AWG	28 AWG	Copper Topcoat	63.5 mm	2.5 "	Zippable	Gray	-20 C	105 ░C	Poly-Vinyl Chloride (PVC)	2.54 mm	0.1 in	25
Molex 0082285508	UL Style 2651	Red	Flat Cable	Unshielded	300 V	100 ft	30.48 m			7	36 AWG	28 AWG		10.16 mm	0.4 in	Zippable	Gray	-20 C	105 ░C	Poly-Vinyl Chloride (PVC)	1.27 mm	0.05 in	8			10 MOhms	0.035 in	0.89 mm
Molex 0082286021	UL E61522	Black	Flat Cable	Unshielded	300 V	100 ft	30.48 m	1.04 mm	0.041 "	7	36 AWG	28 AWG	Copper Topcoat	5.08 mm	0.2 in	Zippable	Gray	-20 C	105 ░C	Poly-Vinyl Chloride (PVC)	2.54 mm	0.1 in	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

008228 Series

Flat Ribbon Cable Gray 16 Conductors 0.100" (2.54mm) Flat Cable 100.0' (30.48m)
