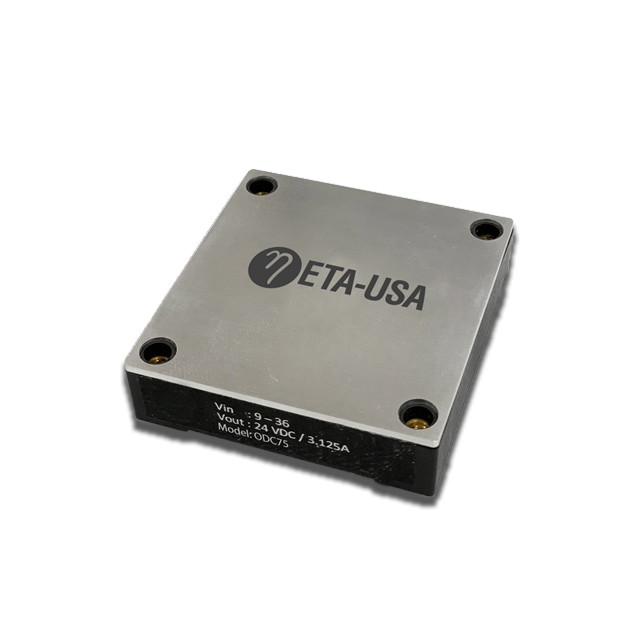

ODC75-05SC110
ActiveETA-USA
DC-DC SMD THROUGH-HOLE ENCAPSUL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ODC75-05SC110
ActiveETA-USA
DC-DC SMD THROUGH-HOLE ENCAPSUL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ODC75-05SC110 |
|---|---|
| Applications | Railway |
| Current - Output (Max) [Max] | 15 A |
| Efficiency | 88 % |
| Features | Adjustable Output |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Half Brick |
| Power (Watts) | 75 W |
| Size / Dimension [x] | 2.4 in |
| Size / Dimension [x] | 61 mm |
| Size / Dimension [y] | 2.28 in |
| Size / Dimension [y] | 57.9 mm |
| Size / Dimension [z] | 15 mm |
| Size / Dimension [z] | 0.59 in |
| Supplier Device Package | Half Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 110 V |
| Voltage - Input (Min) [Min] | 40 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 99.00 | |
| 15 | $ 86.00 | |||
Description
General part information
ODC75 Series
Isolated Module DC DC Converter 1 Output 5V 15A 40V - 110V Input
