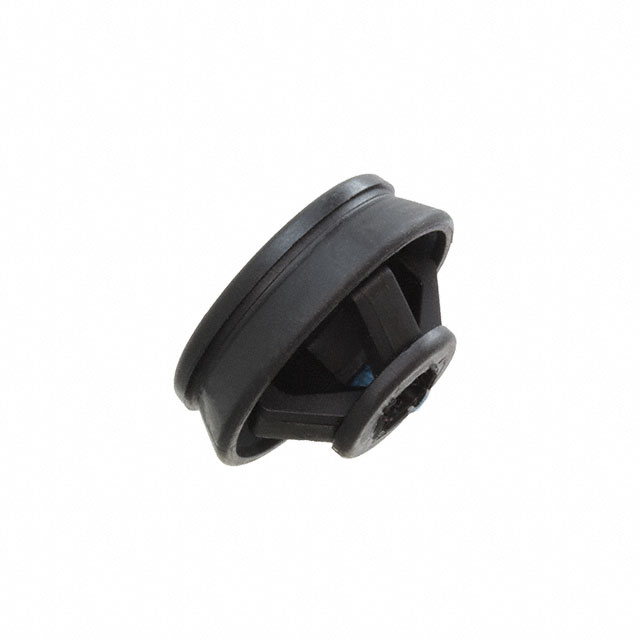

98518.9
ActiveConta-Clip, Inc.
M20 CLIXX, MEMBRANE; COLOR
Deep-Dive with AI
Search across all available documentation for this part.
98518.9
ActiveConta-Clip, Inc.
M20 CLIXX, MEMBRANE; COLOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 98518.9 |
|---|---|
| Bushing, Grommet Type | Grommet |
| For Use With/Related Products | Wires, Cable |
| Panel Cutout Dimensions [diameter] | 0.815 in |
| Panel Cutout Dimensions [diameter] | 20.7 mm |
| Panel Thickness [Max] | 0.15 in |
| Panel Thickness [Max] | 3.51 mm |
| Panel Thickness [Min] | 0.79 mm |
| Panel Thickness [Min] | 0.031 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.82 | |
| 10 | $ 0.69 | |||
| 25 | $ 0.66 | |||
| 50 | $ 0.65 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.57 | |||
| 500 | $ 0.51 | |||
| 1000 | $ 0.45 | |||
| 2500 | $ 0.41 | |||
Description
General part information
98518 Series
Circular - 0.815" (20.70mm) Grommet
Documents
Technical documentation and resources
No documents available
