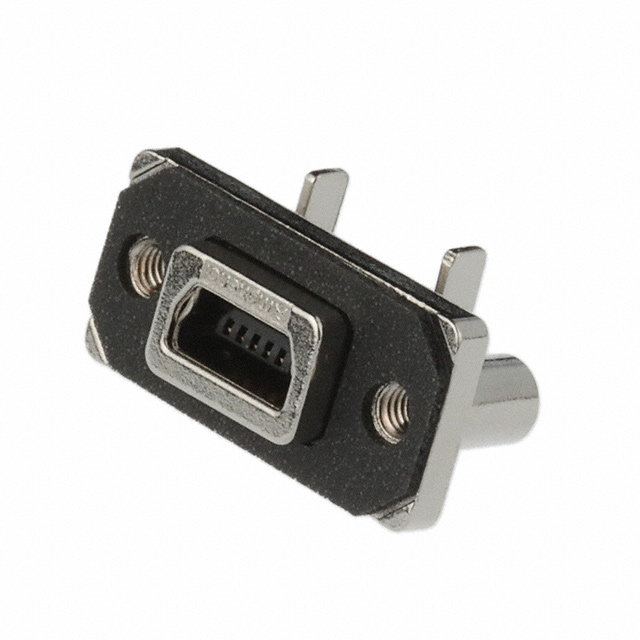

MUSBB551N4
ActiveAmphenol ICC (Commercial Products)
CONN RCP USB2.0 MINI B 5P PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MUSBB551N4
ActiveAmphenol ICC (Commercial Products)
CONN RCP USB2.0 MINI B 5P PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MUSBB551N4 |
|---|---|
| Connector Type | USB - mini B |
| Contact Finish | Gold |
| Gender | Receptacle |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 5000 |
| Mounting Feature | Flange, Vertical |
| Mounting Type | Through Hole, Panel Mount |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Copper Alloy |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 17.43 | |
| 10 | $ 15.10 | |||
| 25 | $ 14.31 | |||
| 80 | $ 12.45 | |||
| 320 | $ 11.62 | |||
| 560 | $ 11.37 | |||
Description
General part information
MUSBB Series
USB - mini B USB 2.0 Receptacle Connector 5 Position Panel Mount, Through Hole
Documents
Technical documentation and resources
