0022182041

Active

Molex

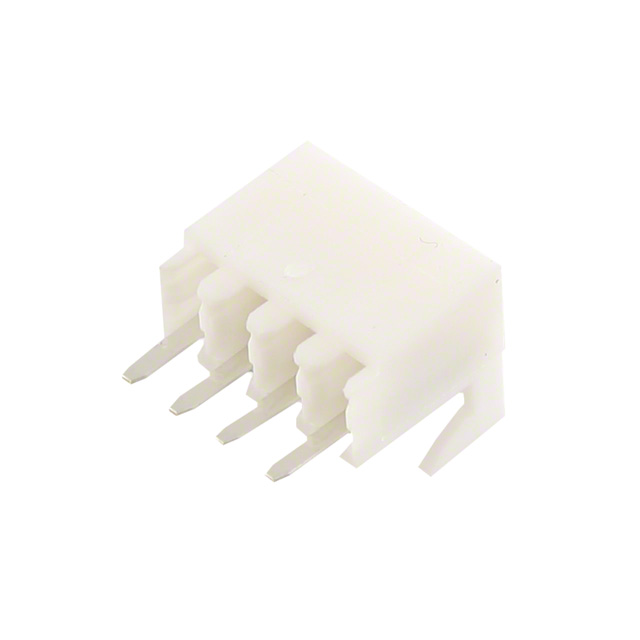

CONN RCPT 4POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0022182041

Active

Molex

CONN RCPT 4POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022182041

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.35 mm
Contact Length - Post	0.132 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Non-Gendered
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Features	Board Hooks
Insulation Color	White
Insulation Height	0.311 in
Insulation Height	7.9 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

002218 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Shape	Contact Material	Contact Finish - Mating	Mounting Type	Fastening Type	Features	Current Rating (Amps)	Contact Type	Style	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Insulation Color	Voltage Rating	Number of Rows	Insulation Material	Number of Positions Loaded	Connector Type	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Applications
Molex 0022182041	15 µin	0.38 µm	0.1 in	2.54 mm	UL94 V-0	Square	Brass	Gold	Through Hole	Push-Pull	Board Hooks	2.5 A	Non-Gendered	Board to Board Cable	Solder	2.54 µm	100 µin	Tin	-40 °C	80 C	4	White	250 VAC	1	Nylon Polyamide (PA)	All	Receptacle	3.35 mm	0.132 in	0.311 in	7.9 mm	Automotive General Purpose Medical Telecommunications
Molex 0022182071	15 µin	0.38 µm	0.1 in	2.54 mm	UL94 V-0	Square	Brass	Gold	Through Hole	Push-Pull	Board Hooks	2.5 A	Non-Gendered	Board to Board Cable	Solder	2.54 µm	100 µin	Tin	-40 °C	80 C	7	White	250 VAC	1	Nylon Polyamide (PA)	All	Receptacle	3.35 mm	0.132 in	0.311 in	7.9 mm	Automotive General Purpose Medical Telecommunications
Molex 0022182253	20 µin	0.51 µm	0.1 in	2.54 mm	UL94 V-0	Square	Brass	Gold	Through Hole	Push-Pull	Board Hooks	2.5 A	Non-Gendered	Board to Board Cable	Solder	0.051 µm	2 µin	Gold	-40 °C	80 C		White	250 VAC	1	Nylon Polyamide (PA)	All	Receptacle	3.35 mm	0.132 in	0.311 in	7.9 mm	Automotive General Purpose Medical Telecommunications
Molex 0022182103	20 µin	0.51 µm	0.1 in	2.54 mm	UL94 V-0	Square	Brass	Gold	Through Hole	Push-Pull	Board Hooks	2.5 A	Non-Gendered	Board to Board Cable	Solder	0.051 µm	2 µin	Gold	-40 °C	80 C	10	White	250 VAC	1	Nylon Polyamide (PA)	All	Receptacle	3.35 mm	0.132 in	0.311 in	7.9 mm	Automotive General Purpose Medical Telecommunications
Molex 0022182083	20 µin	0.51 µm	0.1 in	2.54 mm	UL94 V-0	Square	Brass	Gold	Through Hole	Push-Pull	Board Hooks	2.5 A	Non-Gendered	Board to Board Cable	Solder	0.051 µm	2 µin	Gold	-40 °C	80 C	8	White	250 VAC	1	Nylon Polyamide (PA)	All	Receptacle	3.35 mm	0.132 in	0.311 in	7.9 mm	Automotive General Purpose Medical Telecommunications
Molex 0022182093	20 µin	0.51 µm	0.1 in	2.54 mm	UL94 V-0	Square	Brass	Gold	Through Hole	Push-Pull	Board Hooks	2.5 A	Non-Gendered	Board to Board Cable	Solder	0.051 µm	2 µin	Gold	-40 °C	80 C	9	White	250 VAC	1	Nylon Polyamide (PA)	All	Receptacle	3.35 mm	0.132 in	0.311 in	7.9 mm	Automotive General Purpose Medical Telecommunications
Molex 0022182101	15 µin	0.38 µm	0.1 in	2.54 mm	UL94 V-0	Square	Brass	Gold	Through Hole	Push-Pull	Board Hooks	2.5 A	Non-Gendered	Board to Board Cable	Solder	2.54 µm	100 µin	Tin	-40 °C	80 C	10	White	250 VAC	1	Nylon Polyamide (PA)	All	Receptacle	3.35 mm	0.132 in	0.311 in	7.9 mm	Automotive General Purpose Medical Telecommunications
Molex 0022187063	15 µin	0.38 µm	0.1 in	2.54 mm	UL94 V-0	Square	Brass	Gold	Through Hole	Push-Pull	Board Hooks	2.5 A	Non-Gendered	Board to Board Cable	Solder	2.54 µm	100 µin	Tin	-40 °C	80 C	6	White	250 VAC	1	Nylon Polyamide (PA)	All	Receptacle	3.35 mm	0.132 in	0.311 in	7.9 mm	Automotive General Purpose Medical Telecommunications
Molex 0022182082	20 µin	0.51 µm	0.1 in	2.54 mm	UL94 V-0	Square	Phosphor Bronze	Gold	Through Hole	Push-Pull	Board Hooks	4 A	Non-Gendered	Board to Board Cable	Solder	0.051 µm	2 µin	Gold	-40 °C	105 ░C	8	White	250 VAC	1	Nylon Polyamide (PA)	All	Receptacle	3.35 mm	0.132 in	0.311 in	7.9 mm	Automotive General Purpose Medical Telecommunications
Molex 0022182156	20 µin	0.51 µm	0.1 in	2.54 mm	UL94 V-0	Square	Brass	Gold	Through Hole	Push-Pull		2.5 A	Non-Gendered	Board to Board Cable	Solder	0.051 µm	2 µin	Gold	-40 °C	80 C	15	White	250 VAC	1	Nylon Polyamide (PA)	All	Receptacle	3.35 mm	0.132 in	0.311 in	7.9 mm	Automotive General Purpose Medical Telecommunications

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.72
		10	$ 0.54
		80	$ 0.42
		440	$ 0.36
		945	$ 0.33
		4900	$ 0.29
		10000	$ 0.28

Description

General part information

002218 Series

4 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
