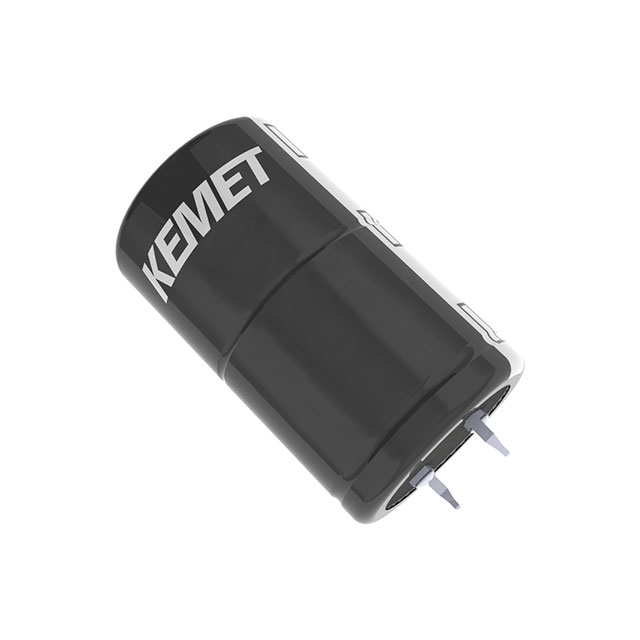

ALA7DA561EF550

Active

KEMET

CAP ALUM 560UF 20% 550V SNAP TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsALA7D Series Datasheet Datasheet

ALA7DA561EF550

Active

KEMET

CAP ALUM 560UF 20% 550V SNAP TH

Deep-Dive with AI

DocumentsALA7D Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALA7DA561EF550

Applications	Automotive
Capacitance	560 µF
ESR (Equivalent Series Resistance)	315 mOhm
Height - Seated (Max) [Max] [z]	2.047 in
Height - Seated (Max) [Max] [z]	52 mm
Impedance	220 mOhms
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	18000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ratings	AEC-Q200
Ripple Current @ High Frequency	6.1 A
Ripple Current @ Low Frequency	3.2 A
Size / Dimension [diameter]	1.575 "
Size / Dimension [diameter]	40 mm
Tolerance	20 %
Voltage - Rated	550 V

ALA7DA Series

Part	Capacitance	Ripple Current @ High Frequency	Mounting Type	Lifetime @ Temp.	Package / Case	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Ratings	Polarization	Tolerance	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Impedance	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ALA7DA131CC600	130 µF	3 A	Through Hole	13000 Hrs	Radial Can - Snap-In	1.4 A	30 mm	1.181 inches	980 mOhm	AEC-Q200	Polar	20 %	0.394 in	10 mm	37 mm	1.457 in	85 °C	-40 °C	Automotive	676 mOhms
KEMET ALA7DA621CF400	620 µF	2.97 A	Through Hole	13000 Hrs	Radial Can - Snap-In		30 mm	1.181 inches	285 mOhm	AEC-Q200	Polar	20 %			52 mm	2.047 in	85 °C	-40 °C	Automotive	780.2 mOhms	400 V
KEMET ALA7DA561EF550	560 µF	6.1 A	Through Hole	18000 Hrs	Radial Can - Snap-In	3.2 A	40 mm	1.575 "	315 mOhm	AEC-Q200	Polar	20 %	0.394 in	10 mm	52 mm	2.047 in	85 °C	-40 °C	Automotive	220 mOhms	550 V
KEMET ALA7DA241CC500	240 µF	3.96 A	Through Hole	13000 Hrs	Radial Can - Snap-In	1.71 A	30 mm	1.181 inches	1.032 Ohm	AEC-Q200	Polar	20 %			37 mm	1.457 in	85 °C	-40 °C	Automotive		500 V
KEMET ALA7DA221DD600	220 µF	4.2 A	Through Hole	15000 Hrs	Radial Can - Snap-In	2 A	35 mm	1.378 in	585 mOhm	AEC-Q200	Polar	20 %	0.394 in	10 mm			85 °C	-40 °C	Automotive	405 mOhms		42 mm	1.654 in
KEMET ALA7DA181CE600	180 çF	3.8 A	Through Hole	13000 Hrs	Radial Can - Snap-In	1.7 A	30 mm	1.181 inches	708 mOhm	AEC-Q200	Polar	20 %	0.394 in	10 mm	47 mm	1.85 in	85 °C	-40 °C	Automotive	488 mOhms
KEMET ALA7DA161CD600	160 µF	3.5 A	Through Hole	13000 Hrs	Radial Can - Snap-In	1.6 A	30 mm	1.181 inches	797 mOhm	AEC-Q200	Polar	20 %	0.394 in	10 mm			85 °C	-40 °C	Automotive	550 mOhms		42 mm	1.654 in
KEMET ALA7DA471DD450	470 µF	3.92 A	Through Hole	15000 Hrs	Radial Can - Snap-In	1.79 A	35 mm	1.378 in	327 mOhm	AEC-Q200	Polar	20 %					85 °C	-40 °C	Automotive	299 mOhms	450 V	42 mm	1.654 in
KEMET ALA7DA681DF450	680 µF	3.7 A	Through Hole	15000 Hrs	Radial Can - Snap-In	1.9 A	35 mm	1.378 in	227.8 mOhm	AEC-Q200	Polar	20 %			52 mm	2.047 in	85 °C	-40 °C	Automotive	567.8 mOhms	450 V
KEMET ALA7DA301CF550	300 µF	4.3 A	Through Hole	13000 Hrs	Radial Can - Snap-In	2 A	30 mm	1.181 inches	567 mOhm	AEC-Q200	Polar	20 %	0.394 in	10 mm	52 mm	2.047 in	85 °C	-40 °C	Automotive	392 mOhms	550 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.77
		10	$ 16.44
		72	$ 14.22
		144	$ 12.80
		504	$ 11.82

Description

General part information

ALA7DA Series

560 µF 550 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 315mOhm @ 100Hz 18000 Hrs @ 85°C

Documents

Technical documentation and resources

ALA7D Series Datasheet

Datasheet
