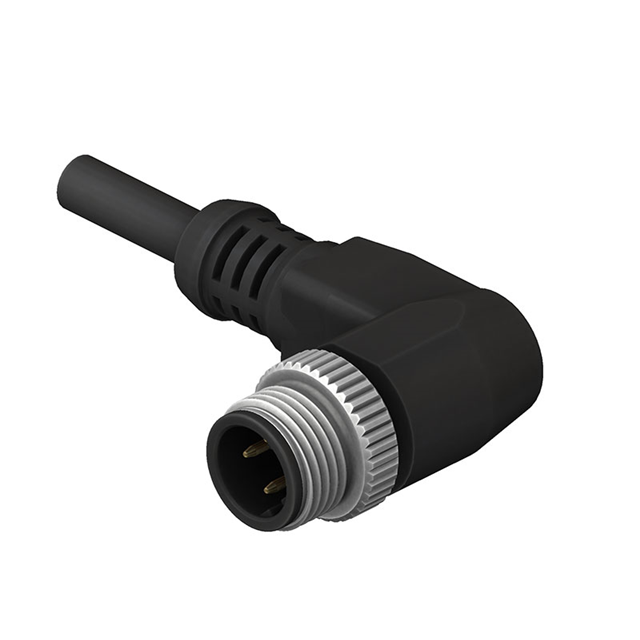

1072M12-04-1-4-RA-00100

Active

CnC Tech, LLC

CBL CIRC 4POS MALE TO WIRE 3.28'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1072M12-04-1-4-RA-00100

Active

CnC Tech, LLC

CBL CIRC 4POS MALE TO WIRE 3.28'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1072M12-04-1-4-RA-00100

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	D
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

1072M12 Series

Part	2nd Connector Type	Shielding	Length [x]	Length [x]	Ingress Protection	Color	Cable Type	Assembly Configuration	Cable Material	Usage	1st Connector Orientation	1st Connector Gender	1st Connector Type	1st Connector Mounting Type	1st Connector Number of Positions Loaded	1st Connector Shell Size - Insert	1st Connector Number of Positions	Length	Length
CnC Tech, LLC 1072M12-03-1-4-RA-00100	Wire Leads	Unshielded	1 m	3.28 ft	IP67 - Dust Tight Waterproof	Black	Round	Standard	Polyvinyl Chloride (PVC)	Industrial Environments	D	Male Pins	Receptacle Right Angle	Free Hanging (In-Line)	All	M12	3
CnC Tech, LLC 1072M12-04-1-4-RA-00100	Wire Leads	Unshielded	1 m	3.28 ft	IP67 - Dust Tight Waterproof	Black	Round	Standard	Polyvinyl Chloride (PVC)	Industrial Environments	D	Male Pins	Receptacle Right Angle	Free Hanging (In-Line)	All	M12	4
CnC Tech, LLC 1072M12-08-1-1-RA-00150	Wire Leads	Unshielded			IP67 - Dust Tight Waterproof	Black	Round	Standard	Polyvinyl Chloride (PVC)	Industrial Environments	A	Male Pins	Receptacle Right Angle	Free Hanging (In-Line)	All	M12	8 positions	4.92 '	1.5 m
CnC Tech, LLC 1072M12-05-1-4-RA-00050	Wire Leads	Unshielded	500 mm	1.64 ft	IP67 - Dust Tight Waterproof	Black	Round	Standard	Polyvinyl Chloride (PVC)	Industrial Environments	D	Male Pins	Receptacle Right Angle	Free Hanging (In-Line)	All	M12	5
CnC Tech, LLC 1072M12-05-1-1-RA-00200	Wire Leads	Unshielded	2 m	6.56 ft	IP67 - Dust Tight Waterproof	Black	Round	Standard	Polyvinyl Chloride (PVC)	Industrial Environments	A	Male Pins	Receptacle Right Angle	Free Hanging (In-Line)	All	M12	5
CnC Tech, LLC 1072M12-05-1-1-S-00200	Wire Leads	Unshielded	2 m	6.56 ft	IP67 - Dust Tight Waterproof	Black	Round	Standard	Polyvinyl Chloride (PVC)	Industrial Environments	A	Male Pins	Receptacle	Free Hanging (In-Line)	All	M12	5
CnC Tech, LLC 1072M12-03-1-1-RA-00150	Wire Leads	Unshielded			IP67 - Dust Tight Waterproof	Black	Round	Standard	Polyvinyl Chloride (PVC)	Industrial Environments	A	Male Pins	Receptacle Right Angle	Free Hanging (In-Line)	All	M12	3	4.92 '	1.5 m
CnC Tech, LLC 1072M12-04-1-1-S-00050	Wire Leads	Unshielded	500 mm	1.64 ft	IP67 - Dust Tight Waterproof	Black	Round	Standard	Polyvinyl Chloride (PVC)	Industrial Environments	A	Male Pins	Receptacle	Free Hanging (In-Line)	All	M12	4
CnC Tech, LLC 1072M12-05-1-1-RA-00150	Wire Leads	Unshielded			IP67 - Dust Tight Waterproof	Black	Round	Standard	Polyvinyl Chloride (PVC)	Industrial Environments	A	Male Pins	Receptacle Right Angle	Free Hanging (In-Line)	All	M12	5	4.92 '	1.5 m
CnC Tech, LLC 1072M12-03-1-1-S-00050	Wire Leads	Unshielded	500 mm	1.64 ft	IP67 - Dust Tight Waterproof	Black	Round	Standard	Polyvinyl Chloride (PVC)	Industrial Environments	A	Male Pins	Plug	Free Hanging (In-Line)	All	M12	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.52
		10	$ 9.47
		25	$ 8.92
		50	$ 8.69

Description

General part information

1072M12 Series

Circular Cable Assembly Unshielded 3.28' (1.00m)
