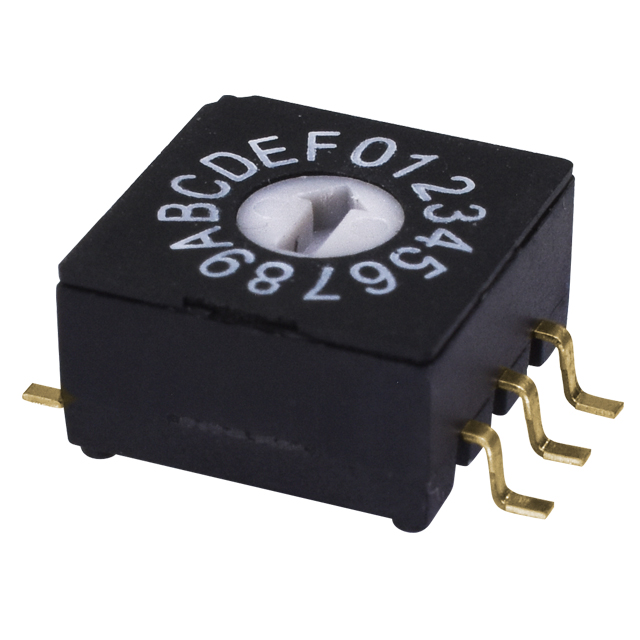

RDS-16S-1055-SMT

Active

CUI Devices

SWITCH ROTARY DIP HEX 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RDS-16S-1055-SMT

Active

CUI Devices

SWITCH ROTARY DIP HEX 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RDS-16S-1055-SMT

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Body Material	Polyamide (PA9T)
Circuit	Hexadecimal
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	25 mA
Electrical Life	10000 Cycles
Height Above Board	5.5 mm
Height Above Board	0.217 in
Length	10 mm
Length	0.394 in
Mounting Type	Surface Mount
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	24 VDC
Washable	False

RDS-16S Series

Part	Actuator Type	Contact Finish	Features	Electrical Life	Actuator Level	Current Rating (Amps)	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Contact Material	Number of Positions	Body Material	Voltage Rating	Circuit	Mounting Type	Termination Style	Length [x]	Length [x]	Length	Length	Pitch	Height Above Board	Height Above Board
CUI Devices RDS-16S-7229-S-ASMT-TR	Rotary with Shaft	Gold	IP67 - Dust Tight Waterproof	10000 Cycles	Raised	100 mA	0.291 in	7.4 mm	85 °C	-40 °C	0.05 in	1.27 mm	Copper Alloy	16	Liquid Crystal Polymer (LCP)	50 V	Hexadecimal	Surface Mount Right Angle	Gull Wing	7.2 mm	0.283 "
CUI Devices RDS-16S-1055-SMT	Rotary for Tool	Gold		10000 Cycles	Flush Recessed	25 mA			85 °C	-40 °C	0.1 in	2.54 mm	Copper Alloy	16	Polyamide (PA9T)	24 VDC	Hexadecimal	Surface Mount	Gull Wing			10 mm	0.394 in	Full	5.5 mm	0.217 in
CUI Devices RDS-16S-7229-R-CR	Rotary with Shaft	Gold	IP67 - Dust Tight Waterproof	10000 Cycles	Raised	100 mA	0.232 in	5.9 mm	85 °C	-40 °C	0.1 in	2.54 mm	Copper Alloy	16	Liquid Crystal Polymer (LCP)	50 V	Hexadecimal	Through Hole	PC Pin	7.2 mm	0.283 "			Full
CUI Devices RDS-16S-7229-S-SMT-TR	Rotary with Shaft	Gold	IP67 - Dust Tight Waterproof	10000 Cycles	Raised	100 mA			85 °C	-40 °C	0.1 in	2.54 mm	Copper Alloy	16	Liquid Crystal Polymer (LCP)	50 V	Hexadecimal	Surface Mount	Gull Wing	7.2 mm	0.283 "			Full	6 mm	0.236 in
CUI Devices RDS-16S-74385-SMT-TR	Rotary for Tool	Gold	IP67 - Dust Tight Waterproof	25000 Steps	Flush Recessed	100 mA			125 °C	-60 °C	0.1 in	2.54 mm	Copper Alloy	16	Liquid Crystal Polymer (LCP)	42 VDC	Hexadecimal	Surface Mount	Gull Wing	7.4 mm	0.291 in			Full	3.85 mm	0.152 in
CUI Devices RDS-16S-7229-R-D	Rotary with Shaft	Gold	IP67 - Dust Tight Waterproof	10000 Cycles	Raised	100 mA	0.232 in	5.9 mm	85 °C	-40 °C	0.1 in	2.54 mm	Copper Alloy	16	Liquid Crystal Polymer (LCP)	50 V	Hexadecimal	Through Hole	PC Pin	7.2 mm	0.283 "			Full
CUI Devices RDS-16S-7229-A-ASMT-TR	Rotary for Tool	Gold	IP67 - Dust Tight Waterproof	10000 Cycles	Flush Recessed	100 mA	0.291 in	7.4 mm	85 °C	-40 °C	0.05 in	1.27 mm	Copper Alloy	16	Liquid Crystal Polymer (LCP)	50 V	Hexadecimal	Surface Mount Right Angle	Gull Wing	7.2 mm	0.283 "
CUI Devices RDS-16S-7229-R-SMT	Rotary with Shaft	Gold	IP67 - Dust Tight Waterproof	10000 Cycles	Raised	100 mA			85 °C	-40 °C	0.1 in	2.54 mm	Copper Alloy	16	Liquid Crystal Polymer (LCP)	50 V	Hexadecimal	Surface Mount	Gull Wing	7.2 mm	0.283 "			Full	6 mm	0.236 in
CUI Devices RDS-16S-74R-254-D	Rotary for Tool	Gold	IP67 - Dust Tight Waterproof	25000 Steps	Flush Recessed	100 mA	0.291 in	7.4 mm	125 °C	-60 °C	0.1 in	2.54 mm	Copper Alloy	16	Liquid Crystal Polymer (LCP)	42 VDC	Hexadecimal	Through Hole Right Angle	PC Pin	7.4 mm	0.291 in			Full
CUI Devices RDS-16S-74R45A-254-D	Rotary with Shaft	Gold	IP67 - Dust Tight Waterproof	25000 Steps	Raised	100 mA	0.291 in	7.4 mm	125 °C	-60 °C	0.1 in	2.54 mm	Copper Alloy	16	Liquid Crystal Polymer (LCP)	42 VDC	Hexadecimal	Through Hole Right Angle	PC Pin	7.4 mm	0.291 in			Full

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.75
		10	$ 2.59
		47	$ 2.35
		141	$ 2.04
		282	$ 1.85
		517	$ 1.72
		1034	$ 1.59
		2538	$ 1.45
		5029	$ 1.39

Description

General part information

RDS-16S Series

Dip Switch Hexadecimal 16 Position Surface Mount Rotary for Tool Actuator 25mA 24VDC
