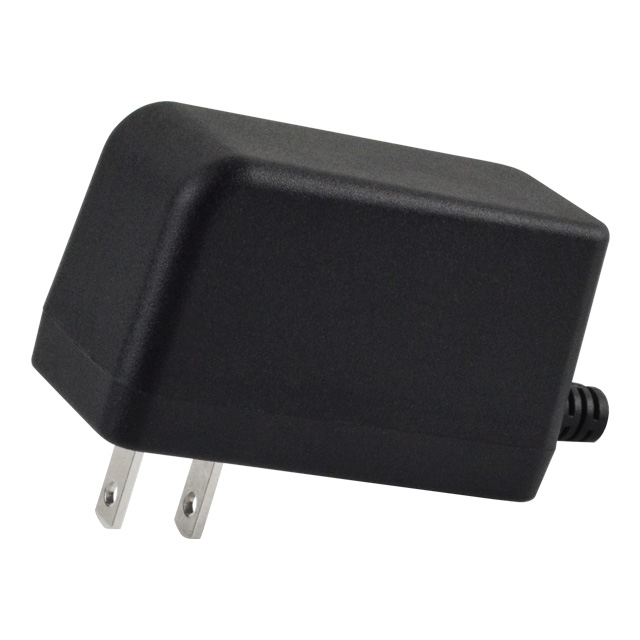

SWI12-5.9-N-P5

Active

CUI Inc.

AC/DC WALL MNT ADAPTER 5.9V 12W

Deep-Dive with AI

Search across all available documentation for this part.

SWI12-5.9-N-P5

Active

CUI Inc.

AC/DC WALL MNT ADAPTER 5.9V 12W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SWI12-5.9-N-P5

Applications	ITE (Commercial)
Approval Agency	FCC, IEC, CB Scheme, UL, CSA, PSE
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	2 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	12 W
Region Utilized	North America
Size / Dimension	1.34 ", 1.65 ", 2.83 "
Size / Dimension	34 mm, 72 mm, 42 mm
Standard Number	C22.2 No. 60950-1, 62368-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5.9 V
Weight	0.278 lb
Weight	126.1 g

SWI12-N Series

Wall Mount AC Adapters 12W 24V 0.5A US plug 2.1x5.5 Level VI

Part	Operating Temperature [Max]	Form	Polarization	Input Connector	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Current - Output (Max) [Max]	Approval Agency	Weight	Weight	Standard Number	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Region Utilized	Voltage - Output	Output Connector [x]	Output Connector [diameter]	Output Connector	Applications	Input Type	Cord Length	Cord Length	Output Connector [z]	Output Connector [y]	Size / Dimension	Size / Dimension	No Load Power Consumption
CUI Inc. SWI12-5-E-P6R	40 °C	Wall Mount (Class II)	Positive Center	CEE 7/16	13 W	90 VAC	264 VAC	75 mW	2.5 A	CB Scheme EN IEC	136.08 g	0.3 lb	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CoC Tier 2 Level VI	72 mm	34 mm	2.38 in	60.5 mm	1.34 in	2.83 "	Europe	5 V	9.5 mm	2.5 mm 5.5 mm	Barrel Plug R/A	ITE (Commercial)	Fixed Blade	1.5 m	59 in
CUI Inc. SWI12-9-E-P5R	40 °C	Wall Mount (Class II)	Positive Center	CEE 7/16	11 W	90 VAC	264 VAC	75 mW	1.2 A	CB Scheme EN IEC	126.1 g	0.278 lb	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CoC Tier 2 Level VI	72 mm	34 mm	2.38 in	60.5 mm	1.34 in	2.83 "	Europe	9 V	2.1 mm		Barrel Plug R/A	ITE (Commercial)	Fixed Blade	1.5 m	59 in	9.5 mm	5.5 mm
CUI Inc. SWI12-5.9-N-P5	40 °C	Wall Mount (Class II)	Positive Center	NEMA 1-15P	12 W	90 VAC	264 VAC	75 mW	2 A	CB Scheme CSA FCC IEC PSE UL	126.1 g	0.278 lb	60950-1 62368-1 C22.2 No. 60950-1	Level VI							North America	5.9 V	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	ITE (Commercial)	Fixed Blade	1.5 m	59 in			1.34 " 1.65 " 2.83 "	34 mm 42 mm 72 mm
CUI Inc. SWI12-24-N-SC	40 °C	Wall Mount (Class II)		NEMA 1-15P	12 W	90 VAC	264 VAC		500 mA	CB Scheme CSA IEC UL			60950-1 C22.2 No. 60950-1	Level VI							North America	24 V			Screw Terminal	ITE (Commercial)	Fixed Blade							100 mW
CUI Inc. SWI12-5-E-P5	40 °C	Wall Mount (Class II)	Positive Center	CEE 7/16	13 W	90 VAC	264 VAC	75 mW	2.5 A	CB Scheme EN IEC	136.08 g	0.3 lb	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CoC Tier 2 Level VI	72 mm	34 mm	2.38 in	60.5 mm	1.34 in	2.83 "	Europe	5 V	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	ITE (Commercial)	Fixed Blade	1.5 m	59 in
CUI Inc. SWI12-24-E-P6R	40 °C	Wall Mount (Class II)	Positive Center	CEE 7/16	12 W	90 VAC	264 VAC	75 mW	500 mA	CB Scheme EN IEC	126.1 g	0.278 lb	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CoC Tier 2 Level VI	72 mm	34 mm	2.38 in	60.5 mm	1.34 in	2.83 "	Europe	24 V	9.5 mm	2.5 mm 5.5 mm	Barrel Plug R/A	ITE (Commercial)	Fixed Blade	1.5 m	59 in
CUI Inc. SWI12-12-E-P6	40 °C	Wall Mount (Class II)	Positive Center	CEE 7/16	12 W	90 VAC	264 VAC	75 mW	1 A	CB Scheme EN IEC	126.1 g	0.278 lb	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CoC Tier 2 Level VI	72 mm	34 mm	2.38 in	60.5 mm	1.34 in	2.83 "	Europe	12 V	9.5 mm	2.5 mm 5.5 mm	Barrel Plug	ITE (Commercial)	Fixed Blade	1.5 m	59 in
CUI Inc. SWI12-12-E-P5	40 °C	Wall Mount (Class II)	Positive Center	CEE 7/16	12 W	90 VAC	264 VAC	75 mW	1 A	CB Scheme EN IEC	126.1 g	0.278 lb	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CoC Tier 2 Level VI	72 mm	34 mm	2.38 in	60.5 mm	1.34 in	2.83 "	Europe	12 V	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	ITE (Commercial)	Fixed Blade	1.5 m	59 in
CUI Inc. SWI12-12-N-P5R	40 °C	Wall Mount (Class II)	Positive Center	NEMA 1-15P	12 W	90 VAC	264 VAC	75 mW	1 A	CB Scheme CSA FCC IEC PSE UL	126.1 g	0.278 lb	60950-1 62368-1 C22.2 No. 60950-1	Level VI							North America	12 V	2.1 mm		Barrel Plug R/A	ITE (Commercial)	Fixed Blade	1.5 m	59 in	9.5 mm	5.5 mm	1.34 " 1.65 " 2.83 "	34 mm 42 mm 72 mm
CUI Inc. SWI12-12-N-SC	40 °C	Wall Mount (Class II)		NEMA 1-15P	12 W	90 VAC	264 VAC		1 A	CB Scheme CSA IEC UL			60950-1 C22.2 No. 60950-1	Level VI							North America	12 V			Screw Terminal	ITE (Commercial)	Fixed Blade							100 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.70
		5	$ 13.33
		10	$ 12.59
		25	$ 11.85
		50	$ 11.11
		100	$ 10.36
		300	$ 9.99
		500	$ 9.85

Description

General part information

SWI12-N Series

Wall Mount AC Adapters 12W 24V 0.5A US plug 2.1x5.5 Level VI
