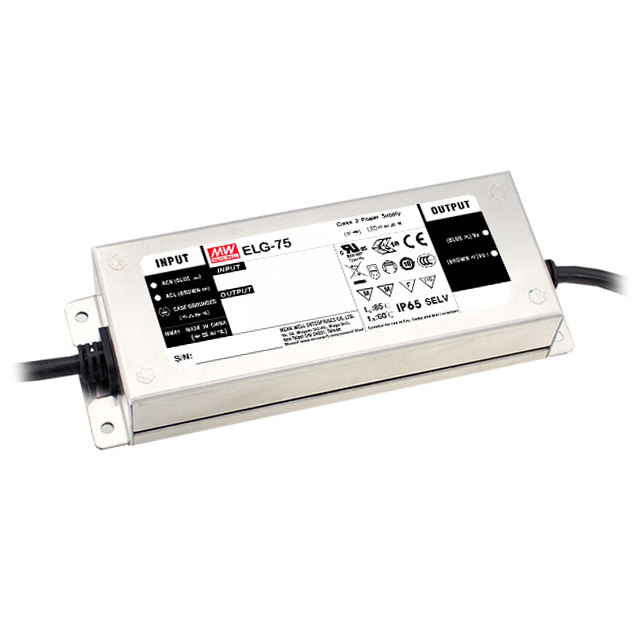

ELG-75-42DA

Active

MEAN WELL USA Inc.

LED POWER SUPPLIES 75.6W 72V 1.8

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ELG-75-42DA

Active

MEAN WELL USA Inc.

LED POWER SUPPLIES 75.6W 72V 1.8

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ELG-75-42DA

Approval Agency	CCC, CB, cURus, EAC, ENEC, RCM, CE
Current - Output (Max) [Max]	1.8 A
Efficiency	90 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	76 W
Ratings	IP67
Size / Dimension [x]	156 mm
Size / Dimension [x]	6.14 in
Size / Dimension [y]	63 mm
Size / Dimension [y]	2.48 in
Size / Dimension [z]	35.5 mm
Size / Dimension [z]	1.4 "
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	100 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	42 V
Voltage - Output [Min]	21 V

ELG-75 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Efficiency	Number of Outputs	Voltage - Output [Min]	Voltage - Output [Max]	Power (Watts)	Current - Output (Max) [Max]	Mounting Type	Features	Termination Style	Voltage - Input (Min) [Min]	Voltage - Isolation	Ratings	Topology	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Dimming	Voltage - Output
MEAN WELL USA Inc. ELG-75-C500DA-3Y	85 °C	-40 °C	Constant Current	91 %	1	75 V	150 V	75 W	500 mA	Chassis Mount	OTP OVP SCP	Wire Leads	100 VAC	3750 V	IP67	AC DC Converter	305 VAC	156 mm	35.5 mm	63 mm	6.14 in	1.4 "	2.48 in	CB CCC CE cURus EAC ENEC KC RCM
MEAN WELL USA Inc. ELG-75-42DA	85 °C	-40 °C	Constant Current Voltage	90 %	1	21 V	42 V	76 W	1.8 A	Chassis Mount	OCP OTP OVP SCP	Wire Leads	100 VAC	3750 V	IP67	AC DC Converter	305 VAC	156 mm	35.5 mm	63 mm	6.14 in	1.4 "	2.48 in	CB CCC CE cURus EAC ENEC RCM
MEAN WELL USA Inc. ELG-75-C500AB	85 °C	-40 °C	Constant Current	91 %	1	75 V	150 V	75 W	500 mA	Chassis Mount	OTP OVP SCP	Wire Leads	100 VAC	3750 V	IP65	AC DC Converter	305 VAC	156 mm	35.5 mm	63 mm	6.14 in	1.4 "	2.48 in	CB CCC CE cURus EAC ENEC KC RCM	Analog PWM
MEAN WELL USA Inc. ELG-75-C1400B	85 °C	-40 °C	Constant Current	90 %	1	27 V	54 V	76 W	1.4 A	Chassis Mount	OTP OVP SCP	Wire Leads	100 VAC	3750 V	IP67	AC DC Converter	305 VAC	156 mm	35.5 mm	63 mm	6.14 in	1.4 "	2.48 in	CB CCC CE cURus ENEC	Analog PWM
MEAN WELL USA Inc. ELG-75-C700-3Y	85 °C	-40 °C	Constant Current	90 %	1			75 W	700 mA	Chassis Mount	OTP OVP SCP	Wire Leads	100 VAC	3750 V	IP67	AC DC Converter	305 VAC	156 mm	35.5 mm	63 mm	6.14 in	1.4 "	2.48 in	CB CCC CE cURus EAC ENEC KC RCM
MEAN WELL USA Inc. ELG-75-48AB-3Y	85 °C	-40 °C	Constant Current Voltage	90 %	1			77 W	1.6 A	Chassis Mount	OCP OTP OVP SCP	Wire Leads	100 VAC	3750 V	IP65	AC DC Converter	305 VAC	156 mm	35.5 mm	63 mm	6.14 in	1.4 "	2.48 in	CB CCC CE cURus EAC ENEC KC RCM		48 V
MEAN WELL USA Inc. ELG-75-36A-3Y	85 °C	-40 °C	Constant Current Voltage	89 %	1			76 W	2.1 A	Chassis Mount	OCP OTP OVP SCP	Wire Leads	100 VAC	3750 V	IP65	AC DC Converter	305 VAC	156 mm	35.5 mm	63 mm	6.14 in	1.4 "	2.48 in	CB CCC CE cURus EAC ENEC KC RCM		36 V
MEAN WELL USA Inc. ELG-75-42AB	85 °C	-40 °C	Constant Current Voltage	90 %	1			76 W	1.8 A	Chassis Mount	OCP OTP OVP SCP	Wire Leads	100 VAC	3750 V	IP65	AC DC Converter	305 VAC	156 mm	35.5 mm	63 mm	6.14 in	1.4 "	2.48 in	CB CCC CE cURus EAC ENEC KC RCM	Analog PWM	42 V
MEAN WELL USA Inc. ELG-75-C1400A	85 °C	-40 °C	Constant Current	90 %	1	27 V	54 V	76 W	1.4 A	Chassis Mount	OTP OVP SCP	Wire Leads	100 VAC	3750 V	IP65	AC DC Converter	305 VAC	156 mm	35.5 mm	63 mm	6.14 in	1.4 "	2.48 in	CB CCC CE cURus ENEC
MEAN WELL USA Inc. ELG-75-24	85 °C	-40 °C	Constant Current Voltage	88 %	1			76 W	3.15 A	Chassis Mount	OCP OTP OVP SCP	Wire Leads	100 VAC	3750 V	IP67	AC DC Converter	305 VAC	156 mm	35.5 mm	63 mm	6.14 in	1.4 "	2.48 in	CB CCC CE cURus TUV		24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 39.70
		5	$ 37.80
		10	$ 36.20
		25	$ 35.10

Description

General part information

ELG-75 Series

1.8A 21 ~ 42V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
