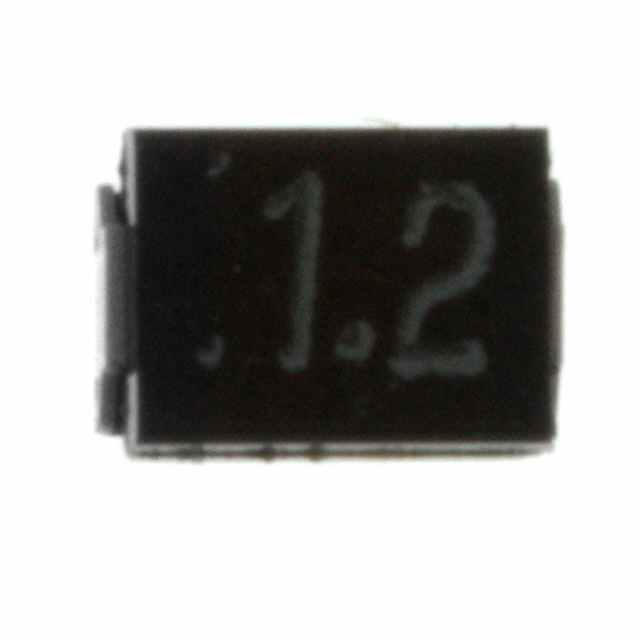

UNHS20300L
ObsoletePanasonic Industrial Automation Sales
IC CIRCUIT PROTECTR 1.2A SNMP 2P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UNHS20300L
ObsoletePanasonic Industrial Automation Sales
IC CIRCUIT PROTECTR 1.2A SNMP 2P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UNHS20300L |
|---|---|
| Current Rating (Amps) | 1.2 A |
| DC Cold Resistance | 45 mOhms |
| Fuse Type | Board Mount |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2-SMD, J-Lead |
| Response Time | Fast Blow |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [y] | 2.3 mm |
| Size / Dimension [y] | 0.091 " |
| Size / Dimension [z] | 2.2 mm |
| Size / Dimension [z] | 0.087 in |
| Voltage Rating - AC | 50 V |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
UNHS20 Series
1.2 A 50 V AC 50 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, J-Lead
