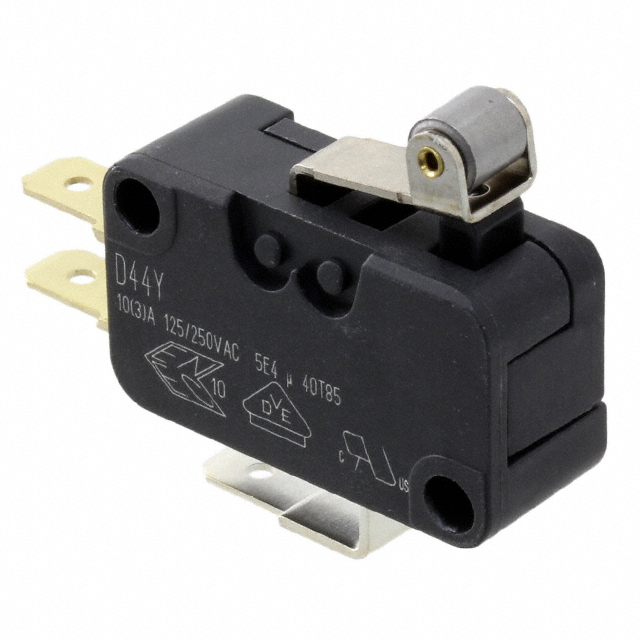

D443-R1RA-G2

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 10A 250V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 10A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Electrical Life	Current Rating (Amps)	Voltage Rating - AC	Overtravel	Overtravel	Operating Force	Operating Position	Operating Position	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Pretravel	Termination Style	Differential Travel	Differential Travel	Switch Function	Mounting Type	Actuator Type	Release Force	Features	Pretravel
ZF Electronics D443-R1AA-G2	50000 Cycles	10 A	250 V	0.051 in	1.3 mm	291 gf	0.579 in	14.7 mm	SPDT	85 °C	-40 °C	0.047 in	1.2 mm	Quick Connect - 0.187" (4.7mm)	0.012 "	0.3 mm	On-Mom	Chassis Mount	Round (Pin Plunger)	102 gf	Explosion Proof
ZF Electronics D443-R1RA-G2	50000 Cycles	10 A	250 V	0.039 in	1 mm	337 gf			SPDT	85 °C	-40 °C	0.047 in	1.2 mm	Quick Connect - 0.187" (4.7mm)	0.016 "	0.4 mm	On-Mom	Chassis Mount	Lever Roller	87 gf	Explosion Proof
ZF Electronics D443-R1MD-G2	50000 Cycles	10 A	250 V	0.141 in	3.6 mm	88 gf	0.6 in	15.2 mm	SPDT	85 °C	-40 °C	0.2 in	5.1 mm	Quick Connect - 0.187" (4.7mm)	0.05 in	1.3 mm	On-Mom	Chassis Mount	Lever Straight	25 gf	Explosion Proof
ZF Electronics D443-R1LD-G2	50000 Cycles	10 A	250 V	0.09 in	2.3 mm	147 gf	0.6 in	15.2 mm	SPDT	85 °C	-40 °C		0.125 in	Quick Connect - 0.187" (4.7mm)	0.031 "	0.8 mm	On-Mom	Chassis Mount	Lever Straight	41 gf	Explosion Proof	3.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
