BAS70-04W-AQ

Active

Diotec Semiconductor

SCHOT SOT323 70V 70MA 150DEG

Search across all available documentation for this part.

Active

Diotec Semiconductor

SCHOT SOT323 70V 70MA 150DEG

Technical Specifications

Parameters and characteristics for this part

Specification	BAS70-04W-AQ

Current - Reverse Leakage @ Vr	100 nA
Diode Configuration	1 Pair Series Connection
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C

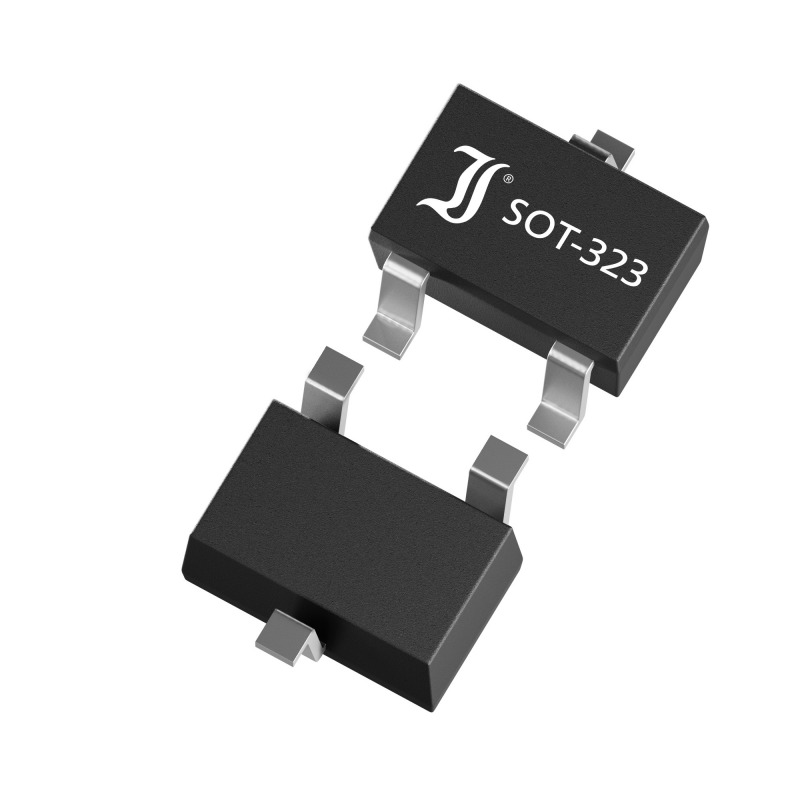

Package / Case	SC-70, SOT-323
Qualification	AEC-Q101
Reverse Recovery Time (trr)	5 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOT-323
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	70 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Speed	Speed	Qualification	Technology	Supplier Device Package	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Reverse Recovery Time (trr)	Package / Case	Grade	Voltage - Forward (Vf) (Max) @ If	Diode Configuration
Diotec Semiconductor BAS70-04W-AQ	Any Speed	200 mA	AEC-Q101	Schottky	SOT-323	100 nA	70 V	Surface Mount	150 °C	-55 °C	5 ns	SC-70 SOT-323	Automotive	1 V	1 Pair Series Connection
Diotec Semiconductor BAS70-06	Any Speed	200 mA		Schottky	SOT-23-3 (TO-236)	100 nA	70 V	Surface Mount	150 °C	-55 °C	5 ns	SC-59 SOT-23-3 TO-236-3		1 V	1 Pair Common Anode
Diotec Semiconductor BAS70-04W	Any Speed	200 mA		Schottky	SOT-323	100 nA	70 V	Surface Mount	150 °C	-55 °C	5 ns	SC-70 SOT-323		1 V	1 Pair Series Connection

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Series Connection 70 V 70mA Surface Mount SC-70, SOT-323
