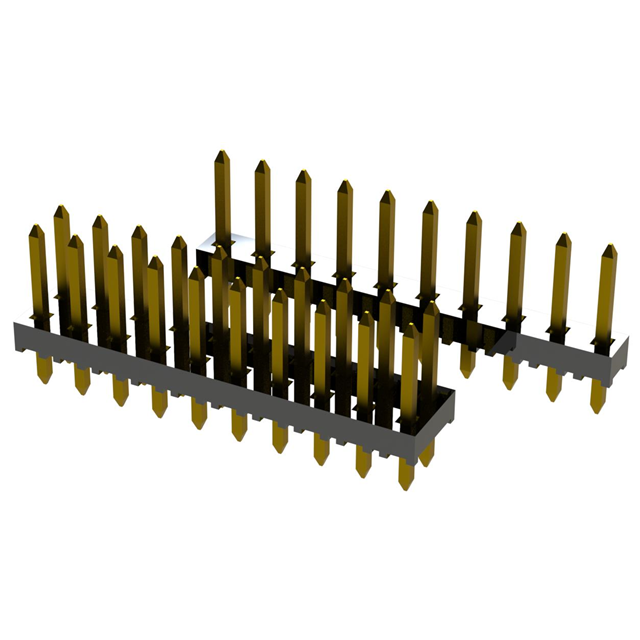

ULTSHC-136-S-03-105-F-LF
ActiveMajor League Electronics
.100 HEADER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ULTSHC-136-S-03-105-F-LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Post | 4.32 mm |
| Contact Length - Post | 0.17 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.06 in |
| Insulation Height [z] | 1.52 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 8.51 mm |
| Overall Contact Length | 0.335 in |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ULTSHC Series
Connector Header Through Hole 36 position 0.100" (2.54mm)
