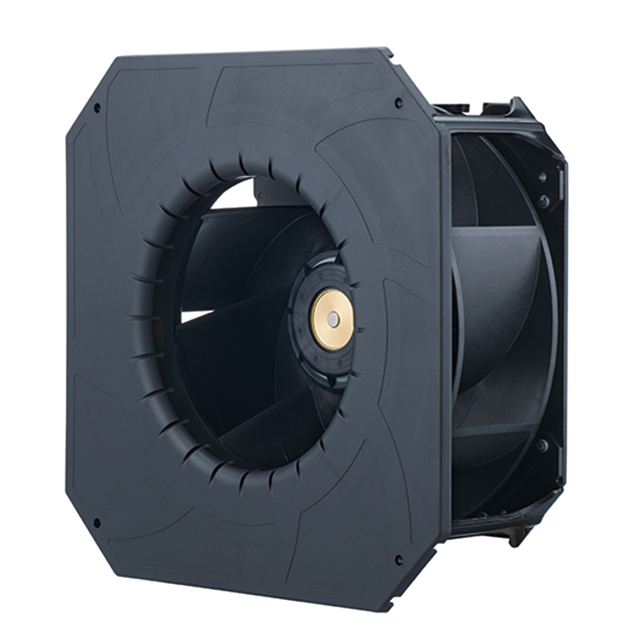

9B1TS48P0G001

Active

Sanyo Denki America Inc.

FAN BLOWER CF 270X119.0MM 48VDC

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN BLOWER CF 270X119.0MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	9B1TS48P0G001

Air Flow	992 CFM
Air Flow	27.78 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	3.65 A
Fan Type	Blower, Centrifugal
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	74.5 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	175.2 W
RPM	3550 RPM
Size / Dimension [x]	270 mm
Size / Dimension [z]	270 mm
Static Pressure	3.46 in H2O
Static Pressure	861.8 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	72 VDC
Voltage Range [Min]	36 VDC
Weight	1.9 kg
Weight	4.2 lbs
Width [x]	119 mm

Part	Width [x]	Size / Dimension [x]	Size / Dimension [z]	Termination	RPM	Voltage - Rated [custom]	Fan Type	Weight	Weight	Material - Frame	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Bearing Type	Static Pressure	Static Pressure	Lifetime @ Temp.	Air Flow	Air Flow	Features	Current Rating (Amps)	Power (Watts)	Noise
Sanyo Denki America Inc. 9B1TS48P0G001	119 mm	270 mm	270 mm	4 Wire Leads	3550 RPM	48 VDC	Blower Centrifugal	1.9 kg	4.2 lbs	Aluminum	Plastic	72 VDC	36 VDC	60 °C	-20 °C	-20 C	60 °C	CSA TUV UL	Ball	3.46 in H2O	861.8 Pa	40000 Hrs	992 CFM	27.78 m³/min	Locked Rotor Protection PWM Control Speed Sensor (Tach)	3.65 A	175.2 W	74.5 dB(A)
Sanyo Denki America Inc. 9B1TS48P0H001	119 mm	270 mm	270 mm	4 Wire Leads	2900 RPM	48 VDC	Blower Centrifugal	1.9 kg	4.2 lbs	Aluminum	Plastic	72 VDC	36 VDC	70 °C	-20 °C	-20 C	70 °C	CSA TUV UL	Ball	2.37 in H2O	590 Pa	40000 Hrs	802 CFM	22.46 m³/min	Locked Rotor Protection PWM Control Speed Sensor (Tach)	2.08 A	99.8 W	70.5 dB(A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Centrifugal 48VDC Square - 270mm L x 270mm H Ball 992.0 CFM (27.78m³/min) 4 Wire Leads
