71-02-7129-1000

Active

Parker Chomerics

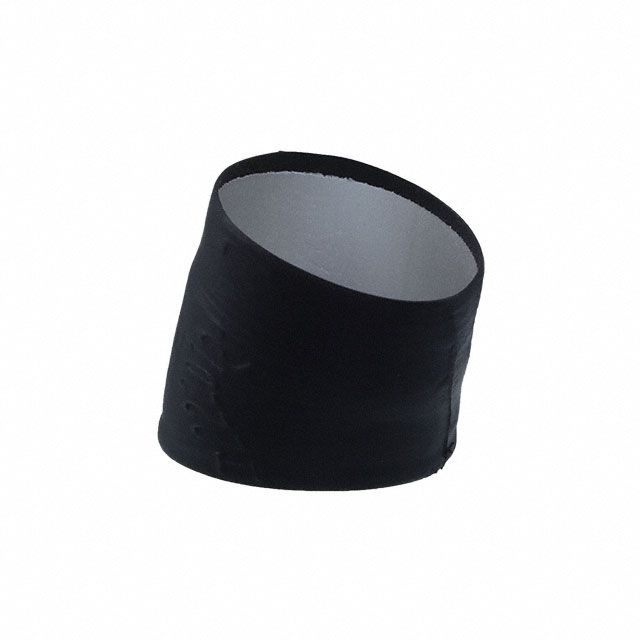

EMI HEATSHRINK BOOT R/A BLACK

Search across all available documentation for this part.

Active

Parker Chomerics

EMI HEATSHRINK BOOT R/A BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	71-02-7129-1000

Color	Black
Features	Lip
Large Diameter Recovered [diameter]	0.88 "
Large Diameter Recovered [diameter]	22.35 mm
Large Diameter Supplied [diameter]	1.42 in
Large Diameter Supplied [diameter]	36.07 mm
Large Recovered Length	35.05 mm
Large Recovered Length	1.38 in
Material	Polyolefin (PO)
Small Diameter Recovered [diameter]	8.38 mm
Small Diameter Recovered [diameter]	0.33 "
Small Recovered Length	14.48 mm
Small Recovered Length [x]	0.57 in
Total Length Recovered [x]	43.69 mm
Total Length Recovered [x]	1.72 in
Type	Boot - 90°

Part	Small Recovered Length [x]	Small Recovered Length	Large Recovered Length	Large Recovered Length	Total Length Recovered [x]	Total Length Recovered [x]	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Color	Material	Features	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Type
Parker Chomerics 71-02-7129-1000	0.57 in	14.48 mm	35.05 mm	1.38 in	43.69 mm	1.72 in	0.88 "	22.35 mm	1.42 in	36.07 mm	Black	Polyolefin (PO)	Lip	8.38 mm	0.33 "	Boot - 90°

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Boot - 90° Black
