WR-40P-HF-HD-A1E
ActiveJAE Electronics

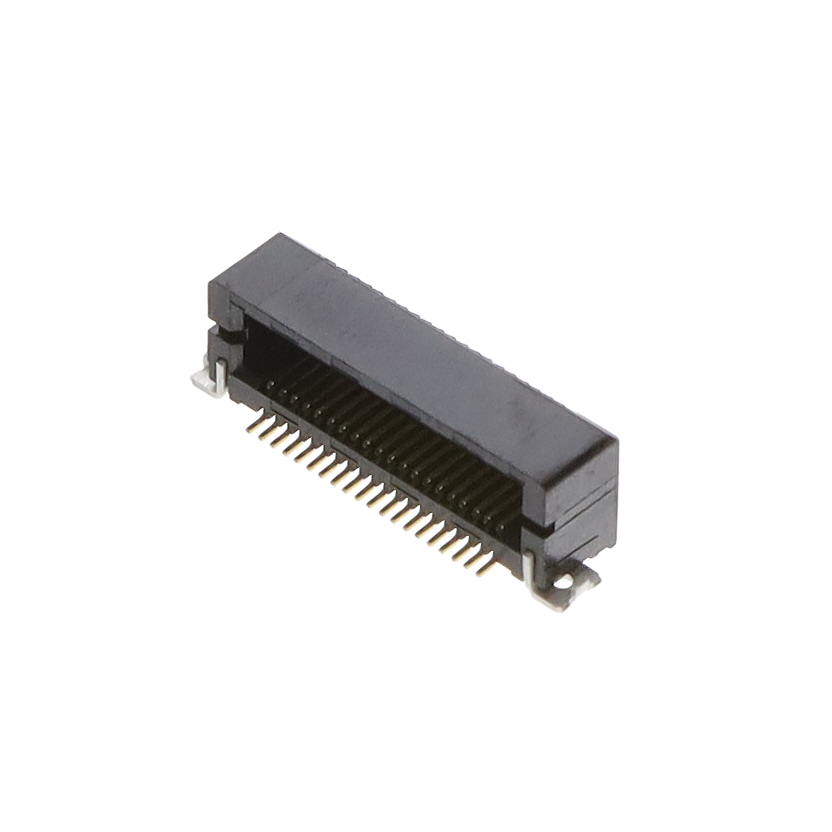

CONN PLUG 40POS R/A SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WR-40P-HF-HD-A1E
ActiveJAE Electronics
CONN PLUG 40POS R/A SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WR-40P-HF-HD-A1E |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board | 4.7 mm |
| Height Above Board | 0.185 in |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 6.25 | |
| 10 | $ 5.66 | |||
| 25 | $ 5.34 | |||
| 50 | $ 5.21 | |||
| 100 | $ 4.95 | |||
| 250 | $ 4.43 | |||
| 500 | $ 4.17 | |||
| 1000 | $ 3.65 | |||
| 2500 | $ 3.47 | |||
Description
General part information
WR-40P-H Series
40 Position Connector Plug, Outer Shroud Contacts Surface Mount, Right Angle Gold
