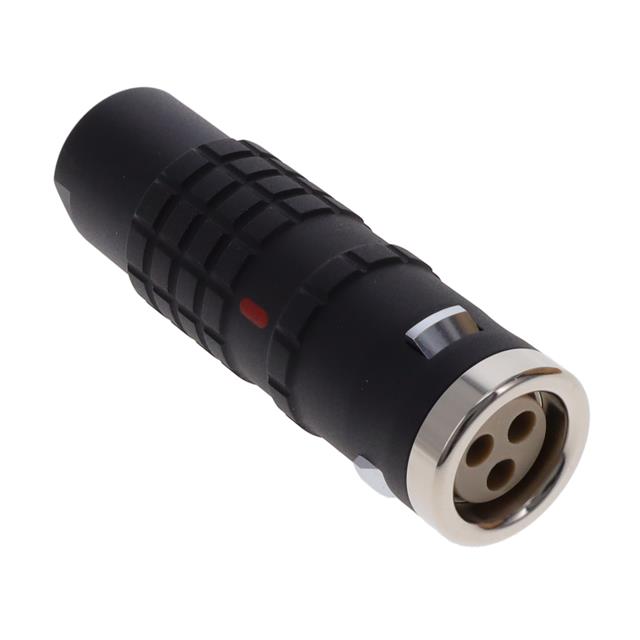

FGL.3K.303.KYMC10

Active

LEMO

CONN INLINE PLUG 3SKT SLD CUP

Deep-Dive with AI

Search across all available documentation for this part.

FGL.3K.303.KYMC10

Active

LEMO

CONN INLINE PLUG 3SKT SLD CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FGL.3K.303.KYMC10

Backshell Material, Plating	Brass, Chrome
Cable Opening [Max] [diameter]	10 mm
Cable Opening [Max] [diameter]	0.394 in
Cable Opening [Min] [diameter]	9.6 mm
Cable Opening [Min] [diameter]	0.378 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Bronze
Current Rating (Amps)	25 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	L
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	303
Shielding	Shielded
Termination	Crimp

FGL.3K Series

Part	Termination	Material Flammability Rating	Ingress Protection	Insert Material	Orientation	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Color	Shell Size - Insert	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Contact Finish - Mating	Contact Material	Features	Shielding	Connector Type	Shell Finish	Backshell Material, Plating	Fastening Type	Primary Material	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [custom]
LEMO FGL.3K.303.KYMC10	Crimp	UL94 V-0	IP68 - Dust Tight Waterproof	Polyetheretherketone (PEEK)	L	25 A	-55 °C	200 °C	Brass	Silver	303	10 mm	9.6 mm	0.378 in	0.394 in	Gold	Bronze	Backshell	Shielded	Female Sockets Plug	Chrome	Brass Chrome	Push-Pull	Metal	Free Hanging (In-Line)
LEMO FGL.3K.308.CLLC70		UL94 V-0	IP66/IP68	Polyetheretherketone (PEEK)	L	13 A	-55 °C	200 °C	Brass	Silver	308					Gold	Bronze	Backshell	Shielded	Female Sockets Plug	Chrome	Brass Chrome	Push-Pull	Metal	Free Hanging (In-Line)	59 Áin	1.5 Ám	8	7 mm	0.26 in	0.276 in	6.6 mm
LEMO FGL.3K.304.CYMC11Z	Crimp	UL94 V-0	IP66/IP68	Polyetheretherketone (PEEK)	L	19 A	-55 °C	200 °C	Brass	Silver	304					Gold	Bronze	Backshell	Shielded	Female Sockets Plug	Chrome	Brass Chrome	Push-Pull	Metal	Free Hanging (In-Line)	59 Áin	1.5 Ám	4					10.1 mm	0.398 in	10.5 mm	0.413 in
LEMO FGL.3K.310.CYMK15	Crimp	UL94 V-0	IP66/IP68	Polyetheretherketone (PEEK)	L	12 A	-55 °C	200 °C	Brass	Silver	310					Gold	Bronze	Backshell	Shielded	Female Sockets Plug	Chrome	Brass Chrome	Push-Pull	Metal	Free Hanging (In-Line)	59 Áin	1.5 Ám	10									0.555 in 0.591 in 14.1 mm 15 mm
LEMO FGL.3K.312.CYMC90Z	Crimp	UL94 V-0	IP66/IP68	Polyetheretherketone (PEEK)	L	9 A	-55 °C	200 °C	Brass	Silver	312					Gold	Bronze	Backshell	Shielded	Female Sockets Plug	Chrome	Brass Chrome	Push-Pull	Metal	Free Hanging (In-Line)	59 Áin	1.5 Ám	12
LEMO FGL.3K.302.CLLC11Z		UL94 V-0	IP66/IP68	Polyetheretherketone (PEEK)	L	35 A	-55 °C	200 °C	Brass	Silver	302					Gold	Bronze	Backshell	Shielded	Female Sockets Plug	Chrome	Brass Chrome	Push-Pull	Metal	Free Hanging (In-Line)	59 Áin	1.5 Ám	2					10.1 mm	0.398 in	10.5 mm	0.413 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 132.38

Description

General part information

FGL.3K Series

3 Position Circular Connector Plug, Female Sockets Crimp
