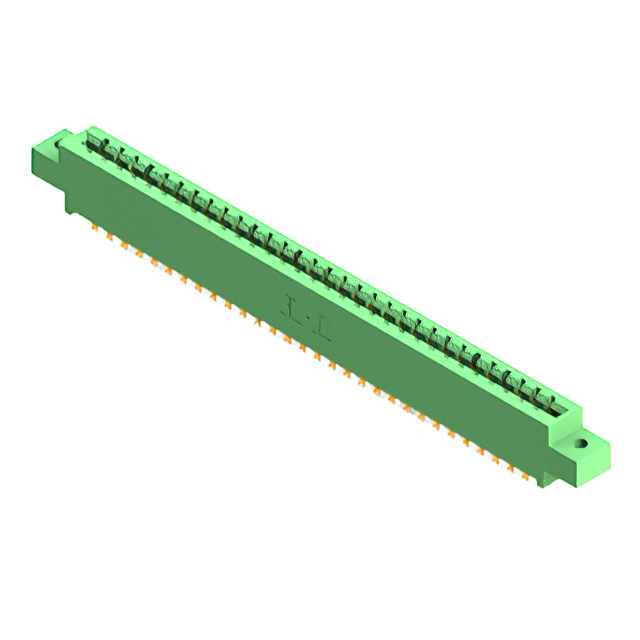

337-062-555-802
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 62POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
337-062-555-802
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 62POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-062-555-802 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 62 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
337-062 Series
...
| Part | Termination | Read Out | Contact Finish | Gender | Mounting Type | Number of Rows | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Number of Positions | Contact Material | Color | Card Type | Material - Insulation | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Features | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Wire Wrap | Dual | Gold | Female | Through Hole | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 62 | Copper Alloy | Green | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Wire Wrap | Dual | Gold | Female | Through Hole | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 62 | Copper Alloy | Green | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | Card Guides | ||||
EDAC Inc. | Wire Wrap | Dual | Gold | Female | Through Hole Right Angle | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 62 | Copper Alloy | Green | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | ||||||
EDAC Inc. | Wire Wrap | Dual | Gold | Female | Through Hole Right Angle | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 62 | Copper Alloy | Green | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | Card Guides | ||||
EDAC Inc. | Wire Wrap | Dual | Gold | Female | Through Hole Right Angle | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | Floating Bobbin Flush Mount | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 62 | Copper Alloy | Green | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | 0.116 in | 2.95 mm | |||
EDAC Inc. | Solder | Dual | Gold | Female | Through Hole | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | Flush Mount M3 Threaded Insert Top Opening | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 62 | Copper Alloy | Green | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Solder Eyelet(s) | Dual | Gold | Female | Board Edge Straddle Mount | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 62 | Copper Alloy | Green | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | Card Extender | 3.25 mm | 0.128 in | |||
EDAC Inc. | Solder | Dual | Gold | Female | Board Edge Straddle Mount | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 62 | Copper Alloy | Green | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | Card Extender | 3.25 mm | 0.128 in | |||
EDAC Inc. | Wire Wrap | Dual | Gold | Female | Through Hole Right Angle | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 62 | Copper Alloy | Green | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Solder | Dual | Gold | Female | Through Hole | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 62 | Copper Alloy | Green | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 16.34 | |
Description
General part information
337-062 Series
62 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
