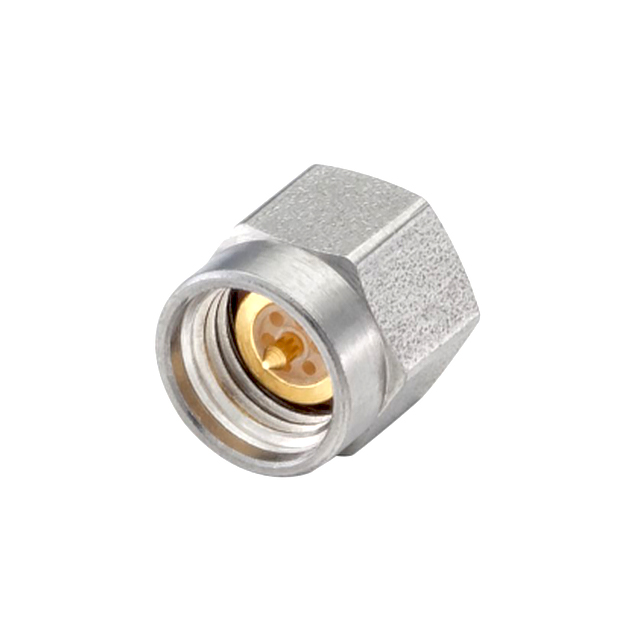

02S141-271E4

Active

Rosenberger

CONN RPC2.92 PLUG STR 50OHM

Search across all available documentation for this part.

Active

Rosenberger

CONN RPC2.92 PLUG STR 50OHM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Termination	Number of Ports	Center Contact Plating	Mating Cycles	Center Contact Material	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Voltage Rating	Body Material	Connector Type	Frequency - Max [Max]	Connector Style	Shield Termination	Mounting Type	Impedance	Body Finish	Cable Group
Rosenberger 02S141-271E4	Solder	1	Gold	500	Beryllium Copper	Silver	85 °C	-40 °C	Polystyrene (PS)	250 VDC	Stainless Steel	Male Pin Plug	43.5 GHz	2.92 mm	Solder	Free Hanging (In-Line)	50 Ohms
Rosenberger 02S141-270L5	Solder	1	Gold	500	Brass	Gold	85 °C	-40 °C	Polystyrene (PS) Polytetrafluoroethylene (PTFE)	250 VDC	Beryllium Copper	Male Pin Plug	40 GHz	2.92 mm	Solder	Free Hanging (In-Line)	50 Ohms	Gold	UT-47
Rosenberger 02S141-272E4	Solder	1	Gold	500	Beryllium Copper	Gold	85 °C	-40 °C	Polystyrene (PS)	250 VDC	Beryllium Copper	Male Pin Plug	40 GHz	2.92 mm	Solder	Free Hanging (In-Line)	50 Ohms	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
