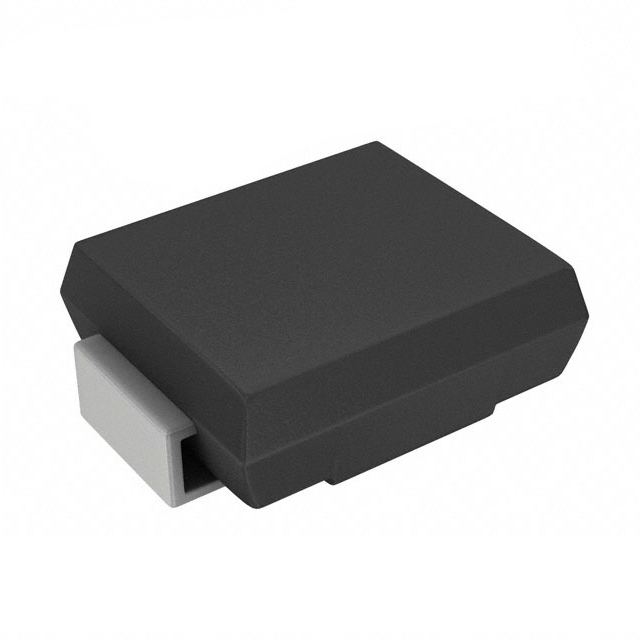

3.0SMCJ22CA-AU_R1_000A1

Active

Panjit International Inc.

SURFACE MOUNT TRANSIENT VOLTAGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3.0SMCJ22CA-AU_R1_000A1

Active

Panjit International Inc.

SURFACE MOUNT TRANSIENT VOLTAGE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3.0SMCJ22CA-AU_R1_000A1

Bidirectional Channels [custom]	1
Current - Peak Pulse (10/1000µs)	84.4 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SMC, DO-214AB
Power - Peak Pulse	3000 W
Power - Peak Pulse	3 kW
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	DO-214AB (SMC)
Type	Zener
Voltage - Clamping (Max) @ Ipp	35.5 V
Voltage - Reverse Standoff (Typ)	22 V

3.0SMCJ Series

Part	Power - Peak Pulse	Power - Peak Pulse	Current - Peak Pulse (10/1000µs)	Package / Case	Voltage - Clamping (Max) @ Ipp [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Reverse Standoff (Typ)	Type	Unidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Applications	Supplier Device Package	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp	Qualification	Grade
Panjit International Inc. 3.0SMCJ6.5A_R1_00001	3000 W	3 kW	267.9 A	DO-214AB SMC	11.2 V	Surface Mount	-55 °C	150 °C	6.5 V	Zener	1	7.22 V	General Purpose	DO-214AB (SMC)
Panjit International Inc. 3.0SMCJ190CA_R1_00001	3000 W	3 kW	9.7 A	DO-214AB SMC	308 V	Surface Mount	-55 °C	150 °C	190 V	Zener		209 V	General Purpose	DO-214AB (SMC)	1
Panjit International Inc. 3.0SMCJ9.0A_R1_00001	3000 W	3 kW	194.8 A	DO-214AB SMC	15.4 V	Surface Mount	-55 °C	150 °C	9 V	Zener	1	10 V	General Purpose	DO-214AB (SMC)
Panjit International Inc. 3.0SMCJ22CA-AU_R1_000A1	3000 W	3 kW	84.4 A	DO-214AB SMC		Surface Mount	-55 °C	150 °C	22 V	Zener				DO-214AB (SMC)	1	35.5 V	AEC-Q101	Automotive
Panjit International Inc. 3.0SMCJ26A_R1_00001	3000 W	3 kW	71.2 A	DO-214AB SMC	42.1 V	Surface Mount	-55 °C	150 °C	26 V	Zener	1	28.9 V	General Purpose	DO-214AB (SMC)
Panjit International Inc. 3.0SMCJ7.5A_R1_00001	3000 W	3 kW	232.6 A	DO-214AB SMC	12.9 V	Surface Mount	-55 °C	150 °C	7.5 V	Zener	1	8.33 V	General Purpose	DO-214AB (SMC)
Panjit International Inc. 3.0SMCJ24CA_R1_00001	3000 W	3 kW	77.2 A	DO-214AB SMC	38.9 V	Surface Mount	-55 °C	150 °C	24 V	Zener		26.7 V	General Purpose	DO-214AB (SMC)	1
Panjit International Inc. 3.0SMCJ6.0CA_R1_00001	3000 W	3 kW	291.3 A	DO-214AB SMC	10.3 V	Surface Mount	-55 °C	150 °C	6 V	Zener		6.67 V	General Purpose	DO-214AB (SMC)	1
Panjit International Inc. 3.0SMCJ220CA_R1_00001	3000 W	3 kW	8.4 A	DO-214AB SMC	356 V	Surface Mount	-55 °C	150 °C	220 V	Zener		242 V	General Purpose	DO-214AB (SMC)	1
Panjit International Inc. 3.0SMCJ22CA_R1_00001	3000 W	3 kW	84.4 A	DO-214AB SMC		Surface Mount	-55 °C	150 °C	22 V	Zener			General Purpose	DO-214AB (SMC)	1	35.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.79
		10	$ 1.14
		100	$ 0.77
	Digi-Reel®	1	$ 1.79
		10	$ 1.14
		100	$ 0.77
	Tape & Reel (TR)	800	$ 0.57
		1600	$ 0.52
		2400	$ 0.50
		4000	$ 0.47
		5600	$ 0.46
		8000	$ 0.45

Description

General part information

3.0SMCJ Series

35.5V Clamp 84.4A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
