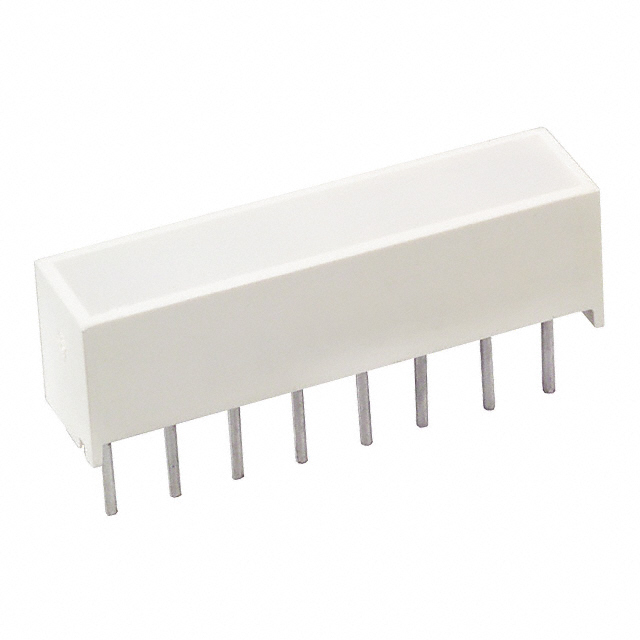

SSB-LX2450YW

Obsolete

Lumex Opto/Components Inc.

LED LT BAR 5X20MM 4CHIP YEL DIFF

Search across all available documentation for this part.

Obsolete

Lumex Opto/Components Inc.

LED LT BAR 5X20MM 4CHIP YEL DIFF

Technical Specifications

Parameters and characteristics for this part

Part	Color	Configuration	Mounting Type	Millicandela Rating	Lens Style	Lens Type	Viewing Angle	Voltage Rating	Wavelength - Peak	Current	Lens Size [y]	Lens Size [x]
Lumex Opto/Components Inc. SSB-LX2450YW	Yellow	Bar - Single SIP	Through Hole	40 mcd	Rectangle with Flat Top	Diffused White	160 °	2.1 V	585 nm	30 mA
Lumex Opto/Components Inc. SSB-LX2450SYW	Yellow	Bar - Single SIP	Through Hole	200 mcd	Rectangle with Flat Top	Diffused White	160 °	2 V	590 nm		3.81 mm	19.05 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Yellow Diffused, White 2.1V 30mA Rectangle with Flat Top Through Hole

Technical documentation and resources

No documents available
