H3BBT-10110-V4

Active

Hirose Electric USA, Inc.

JUMPER-H1504TR/A2015V/H1504TR10"

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

JUMPER-H1504TR/A2015V/H1504TR10"

Technical Specifications

Parameters and characteristics for this part

...

Part	Number of Rows	Contact Finish	Wire Gauge	Number of Conductors	Contact End	Color	Length	Length [x]	Length [x]	Length
Hirose Electric USA, Inc. H3BBT-10102-B2	1	Tin	22 AWG	1	Socket to Socket	Black
Hirose Electric USA, Inc. H3BBT-10112-A8	1	Tin	28 AWG	1	Socket to Socket		304.8 mm	12 in
Hirose Electric USA, Inc. H3BBT-10112-S8	1	Tin	28 AWG	1	Socket to Socket	Slate	304.8 mm	12 in
Hirose Electric USA, Inc. H3BBT-10102-G8	1	Tin	28 AWG	1	Socket to Socket	Green
Hirose Electric USA, Inc. H3BBT-10105-V8	1	Tin	28 AWG	1	Socket to Socket	Violet		5 in	127 mm
Hirose Electric USA, Inc. H3BBT-10108-S6	1	Tin	26 AWG	1	Socket to Socket	Slate	203.2 mm			8 in
Hirose Electric USA, Inc. H3BBT-10108-R2	1	Tin	22 AWG	1	Socket to Socket	Red	203.2 mm			8 in
Hirose Electric USA, Inc. H3BBT-10104-R2	1	Tin	22 AWG	1	Socket to Socket	Red		4 "	101.6 mm
Hirose Electric USA, Inc. H3BBT-10110-V4	1	Tin	24 AWG	1	Socket to Socket	Violet	254 mm	10 in
Hirose Electric USA, Inc. H3BBT-10112-A6	1	Tin	26 AWG	1	Socket to Socket		304.8 mm	12 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

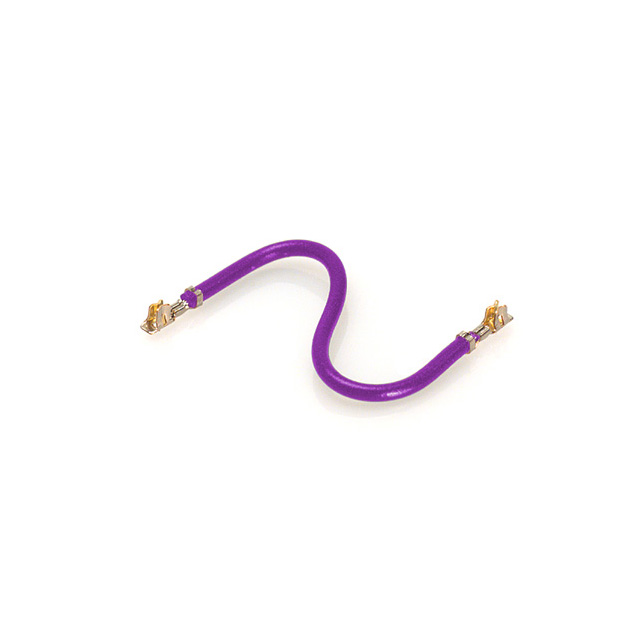

Violet 24 AWG Jumper Lead Socket to Socket Tin 10.0" (254.0mm)
