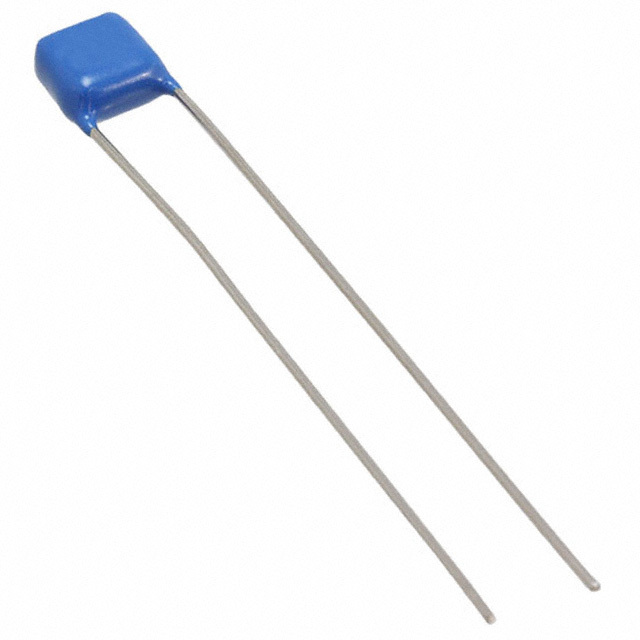

20HV21B472KC
ActiveKEMET
CAP CER 4700PF 2KV X7R RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
20HV21B472KC
ActiveKEMET
CAP CER 4700PF 2KV X7R RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 20HV21B472KC |
|---|---|
| Applications | SMPS Filtering |
| Capacitance | 4700 pF |
| Features | High Voltage |
| Height - Seated (Max) [Max] [z] | 7.11 mm |
| Height - Seated (Max) [Max] [z] | 0.28 in |
| Lead Spacing | 5.59 mm |
| Lead Spacing | 0.22 in |
| Lead Style | Straight |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 0.32 in, 8.13 mm |
| Size / Dimension [y] | 6.35 mm |
| Temperature Coefficient | X7R |
| Tolerance | 10 % |
| Voltage - Rated | 2 kV |
| Voltage - Rated | 2000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
20HV21B Series
4700 pF ±10% 2000V (2kV) Ceramic Capacitor X7R Radial
