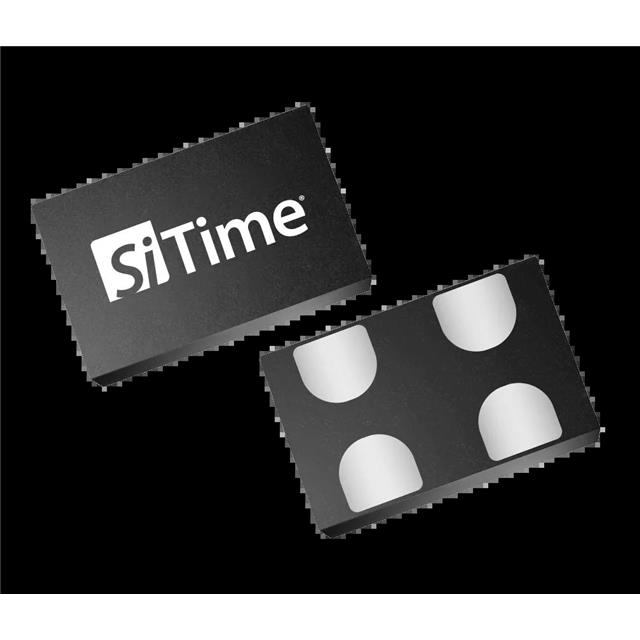

SIT3808AI-CF-33EM-51.200000

Active

SiTime

MEMS OSC VCXO 51.200000 MHZ LVCM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SIT3808AI-CF-33EM-51.200000

Active

SiTime

MEMS OSC VCXO 51.200000 MHZ LVCM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SIT3808AI-CF-33EM-51.200000

Absolute Pull Range (APR)	10 ppm
Base Resonator	MEMS
Current - Supply (Max) [Max]	33 mA
Frequency	51.2 MHz
Frequency Stability	10 ppm
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVCMOS, LVTTL
Package / Case	6-SMD, No Lead
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.126 "
Size / Dimension [y]	3.2 mm
Type	VCXO
Voltage - Supply	3.3 V

SIT3808 Series

...

Part	Current - Supply (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Base Resonator	Frequency	Package / Case	Mounting Type	Output	Frequency Stability	Type	Voltage - Supply	Function	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Absolute Pull Range (APR)	Supplier Device Package
SiTime SIT3808AC-23-33NY-16.000000	33 mA	3.2 mm	2.5 mm	0.126 in	0.098 in	-20 C	70 °C	0.8 mm	0.031 "	MEMS	16 MHz	4-SMD No Lead	Surface Mount	LVCMOS	50 ppm	VCXO	3.3 V
SiTime SIT3808AI-D3-33EE-27.000000	33 mA	7 mm	5 mm	0.276 "	0.197 "	-40 °C	85 °C			MEMS	27 MHz	6-SMD No Lead	Surface Mount	LVCMOS	50 ppm	VCXO	3.3 V	Enable/Disable	0.039 "	1 mm
SiTime SIT3808AI-23-33NE-34.816000	33 mA	3.2 mm	2.5 mm	0.126 in	0.098 in	-40 °C	85 °C	0.8 mm	0.031 "	MEMS	34.816 MHz	4-SMD No Lead	Surface Mount	LVCMOS	50 ppm	VCXO	3.3 V
SiTime SIT3808AI-D3-25EE-32.768000	33 mA	7 mm	5 mm	0.276 "	0.197 "	-40 °C	85 °C			MEMS	32.768 MHz	6-SMD No Lead	Surface Mount	LVCMOS	50 ppm	VCXO	2.5 V	Enable/Disable	0.039 "	1 mm
SiTime SIT3808AC-DF-33NZ-56.800000S	33 mA	7 mm	5 mm	0.276 "	0.197 "	-20 C	70 °C			MEMS	56.8 MHz	6-SMD No Lead	Surface Mount	LVCMOS LVTTL	10 ppm	VCXO	3.3 V		0.039 "	1 mm	1585 ppm
SiTime SIT3808BI-C2-33EH-61.440000	33 mA	5 mm	3.2 mm	0.197 in	0.126 "	-40 °C	85 °C	0.8 mm	0.031 "	MEMS	61.44 MHz	6-SMD No Lead	Surface Mount	LVCMOS LVTTL	25 ppm	VCXO	3.3 V	Enable/Disable			170 ppm
SiTime SIT3808AI-CF-33EM-51.200000	33 mA	5 mm	3.2 mm	0.197 in	0.126 "	-40 °C	85 °C	0.8 mm	0.031 "	MEMS	51.2 MHz	6-SMD No Lead	Surface Mount	LVCMOS LVTTL	10 ppm	VCXO	3.3 V	Enable/Disable			10 ppm
SiTime SIT3808AC-DF-33NG-1.00000X	33 mA	7 mm	5 mm	0.276 "	0.197 "	-20 C	70 °C			MEMS	1 MHz	6-SMD No Lead	Surface Mount	LVCMOS LVTTL	10 ppm	VCXO	3.3 V		0.039 "	1 mm	785 ppm
SiTime SIT3808AC-22-18NB-12.288000	31 mA	3.2 mm	2.5 mm	0.126 in	0.098 in	-20 C	70 °C	0.8 mm	0.031 "	MEMS	12.288 MHz	4-SMD No Lead	Surface Mount	LVCMOS LVTTL	25 ppm	VCXO	1.8 V				20 ppm	4-SMD (3.2x2.5)
SiTime SIT3808ACDDF-33NZ-56.800000S	33 mA	7 mm	5 mm	0.276 "	0.197 "	-20 C	70 °C			MEMS	56.8 MHz	6-SMD No Lead	Surface Mount	LVCMOS LVTTL	10 ppm	VCXO	3.3 V		0.039 "	1 mm	1585 ppm	6-SMD (7x5)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 11.64

Description

General part information

SIT3808 Series

51.2 MHz VCXO LVCMOS, LVTTL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
