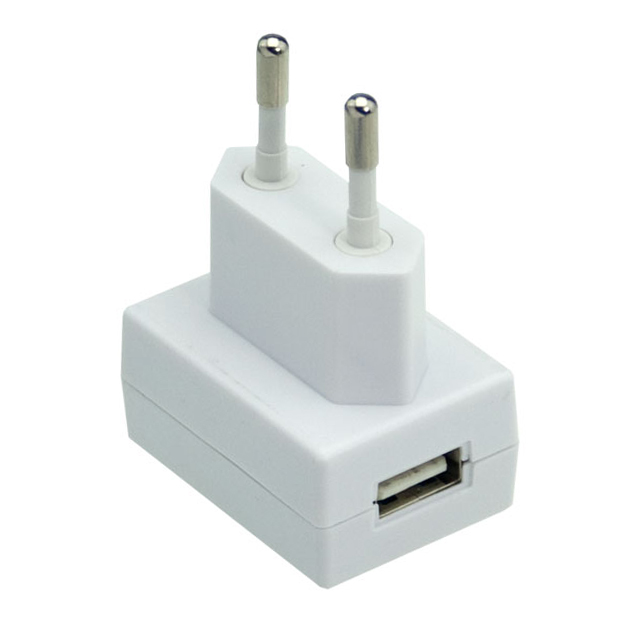

GS05E-USB

Obsolete

MEAN WELL USA Inc.

AC/DC WALL MOUNT ADAPTER 5V 5W

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

AC/DC WALL MOUNT ADAPTER 5V 5W

Technical Specifications

Parameters and characteristics for this part

Specification	GS05E-USB

Applications	ITE (Commercial)
Approval Agency	CE, GS
Current - Output (Max) [Max]	1 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Power (Watts)	5 W
Region Utilized	Europe
Size / Dimension [x]	1.64 "
Size / Dimension [x]	41.5 mm
Size / Dimension [y]	1.2 "
Size / Dimension [y]	30.5 mm
Size / Dimension [z]	20 mm
Size / Dimension [z]	0.79 in
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

Part	Power (Watts)	Input Connector	Form	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Voltage - Output	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Region Utilized	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Current - Output (Max) [Max]	No Load Power Consumption [Max]
MEAN WELL USA Inc. GS05E-USB	5 W	CEE 7/16	Wall Mount (Class II)	ITE (Commercial)	20 mm	1.64 "	41.5 mm	0.79 in	1.2 "	30.5 mm	Level VI	5 V	Fixed Blade	50 °C	-20 C	Europe	90 VAC	264 VAC	CE GS	1 A	75 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.26

General part information

5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
