333-019-500-102
ActiveEDAC Inc.

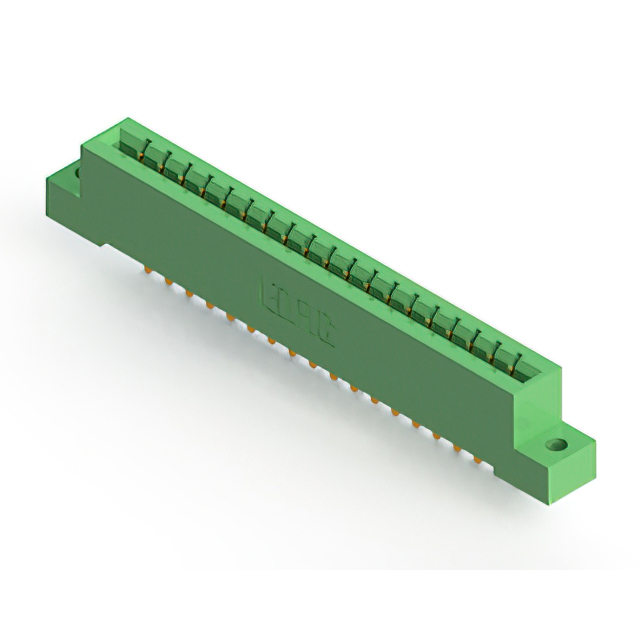

CARD EDGE CONNECTOR, 19 CONTACT(S), 1 ROW(S), FEMALE, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
333-019-500-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 19 CONTACT(S), 1 ROW(S), FEMALE, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, GREEN INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-019-500-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 19 |
| Number of Positions/Bay/Row [custom] | 19 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
333-019 Series
| Part | Contact Material | Contact Finish | Number of Positions | Gender | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Card Type | Flange Feature | Number of Positions/Bay/Row [custom] | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Termination Rows | Material - Insulation | Read Out | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | Gold | 19 | Female | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | 19 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Solder | 1 | Polyester Thermoplastic | Single | 0.156 in | 3.96 mm | ||||
EDAC Inc. | Copper Alloy | Gold | 19 | Female | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 19 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Solder Eyelet(s) | 1 | Diallyl Phthalate (DAP) | Single | 0.156 in | 3.96 mm | 3.25 mm | 0.128 " | ||
EDAC Inc. | Copper Alloy | Gold | 19 | Female | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | 19 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Wire Wrap | 1 | Polyester Thermoplastic | Single | 0.156 in | 3.96 mm | ||||
EDAC Inc. | Copper Alloy | Gold | 19 | Female | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Floating Bobbin Flush Mount | 19 | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Solder | 1 | Polyester Thermoplastic | Single | 0.156 in | 3.96 mm | 2.95 mm | 0.116 in | ||
EDAC Inc. | Copper Alloy | Gold | 19 | Female | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Top Mount Opening Unthreaded | 19 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Solder | 1 | Polyester Thermoplastic | Single | 0.156 in | 3.96 mm | 3.96 mm | 0.156 in | ||
EDAC Inc. | Copper Alloy | Gold | 19 | Female | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | 19 | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Wire Wrap | 1 | Polyester Thermoplastic | Single | 0.156 in | 3.96 mm | 3.25 mm | 0.128 in | |||
EDAC Inc. | Copper Alloy | Gold | 19 | Female | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 19 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Solder Eyelet(s) | 1 | Diallyl Phthalate (DAP) | Single | 0.156 in | 3.96 mm | 3.96 mm | 0.156 in | ||
EDAC Inc. | Copper Alloy | Gold | 19 | Female | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Top Mount Opening Unthreaded | 19 | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Wire Wrap | 1 | Polyester Thermoplastic | Single | 0.156 in | 3.96 mm | 3.96 mm | 0.156 in | ||
EDAC Inc. | Copper Alloy | Gold | 19 | Female | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 19 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Wire Wrap | 1 | Polyester Thermoplastic | Single | 0.156 in | 3.96 mm | 3.25 mm | 0.128 " | ||
EDAC Inc. | Copper Alloy | Gold | 19 | Female | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | 19 | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Wire Wrap | 1 | Polyester Thermoplastic | Single | 0.156 in | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 17.42 | |
Description
General part information
333-019 Series
19 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
