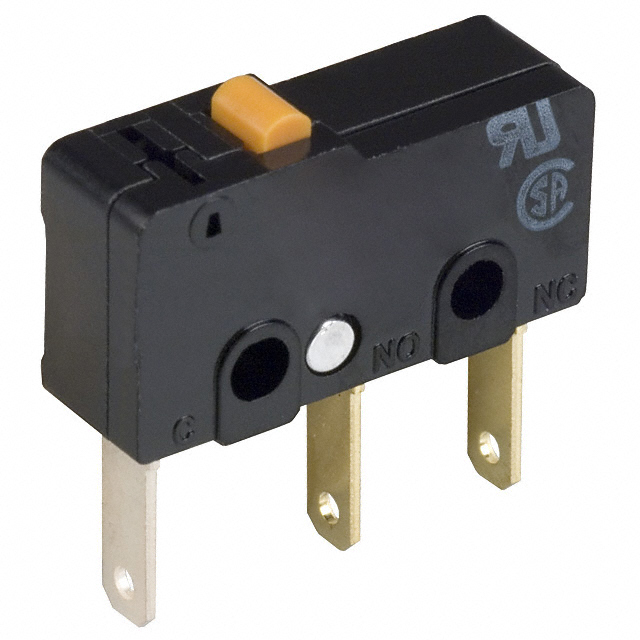

SS-01GL1140T

Obsolete

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

SS-01GL1140T

Obsolete

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-01GL1140T

null

SS-01GL Series

Part	Voltage Rating - DC	Mechanical Life	Release Force	Mounting Type	Differential Travel	Differential Travel	Electrical Life	Operating Force	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Operating Position	Operating Position	Overtravel	Overtravel	Current Rating (Amps)	Voltage Rating - AC	Termination Style	Actuator Type	Switch Function	Operating Position [custom]	Operating Position [custom]
Omron Electronics Inc-EMC Div SS-01GL-3D	30 V	30000000 Cycles	6.118 gf	Through Hole	0.8 mm	0.031 "	200000 Cycles	50 gf	SPST-NO	-25 °C	85 °C	IP40	8.8 mm	0.345 in	1.2 mm	0.047 "	100 mA	125 V	PC Pin	Lever Straight	Off-Mom
Omron Electronics Inc-EMC Div SS-01GL2-F	30 V	30000000 Cycles	2.039 gf	Chassis Mount	0.8 mm	0.031 "	200000 Cycles	16 gf	SPDT	-25 °C	85 °C	IP40			1.2 mm	0.047 "	100 mA	125 V	Solder Lug	Lever Roller	On-Mom	0.571 in	14.5 mm
Omron Electronics Inc-EMC Div SS-01GL1140T
Omron Electronics Inc-EMC Div SS-01GL13-3	30 V	30000000 Cycles	6.118 gf	Chassis Mount	0.8 mm	0.031 "	200000 Cycles	50 gf	SPST-NO	-25 °C	85 °C	IP40			1.2 mm	0.047 "	100 mA	125 V	Solder Lug	Lever Simulated Roller	Off-Mom
Omron Electronics Inc-EMC Div SS-01GL13	30 V	30000000 Cycles	6.118 gf	Chassis Mount	0.8 mm	0.031 "	200000 Cycles	50 gf	SPDT	-25 °C	85 °C	IP40			1.2 mm	0.047 "	100 mA	125 V	Solder Lug	Lever Simulated Roller	On-Mom
Omron Electronics Inc-EMC Div SS-01GL-FT	30 V	30000000 Cycles	2.039 gf	Chassis Mount	0.8 mm	0.031 "	200000 Cycles	16 gf	SPDT	-25 °C	85 °C	IP40	8.8 mm	0.345 in	1.2 mm	0.047 "	100 mA	125 V	Quick Connect - 0.110" (2.8mm)	Lever Straight	On-Mom
Omron Electronics Inc-EMC Div SS-01GL1373-FT
Omron Electronics Inc-EMC Div SS-01GL2-2	30 V	30000000 Cycles	6.118 gf	Chassis Mount	0.8 mm	0.031 "	200000 Cycles	50 gf	SPST-NC	-25 °C	85 °C	IP40			1.2 mm	0.047 "	100 mA	125 V	Solder Lug	Lever Roller	On-Mom	0.571 in	14.5 mm
Omron Electronics Inc-EMC Div SS-01GL2-ED	30 V	30000000 Cycles	1.02 gf	Through Hole	0.8 mm	0.031 "	200000 Cycles	8.158 gf	SPDT	-25 °C	85 °C	IP40			1.2 mm	0.047 "	100 mA	125 V	PC Pin	Lever Roller	On-Mom	0.571 in	14.5 mm
Omron Electronics Inc-EMC Div SS-01GL13-FD	30 V	30000000 Cycles	2.039 gf	Through Hole	0.8 mm	0.031 "	200000 Cycles	16 gf	SPDT	-25 °C	85 °C	IP40			1.2 mm	0.047 "	100 mA	125 V	PC Pin	Lever Simulated Roller	On-Mom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$
