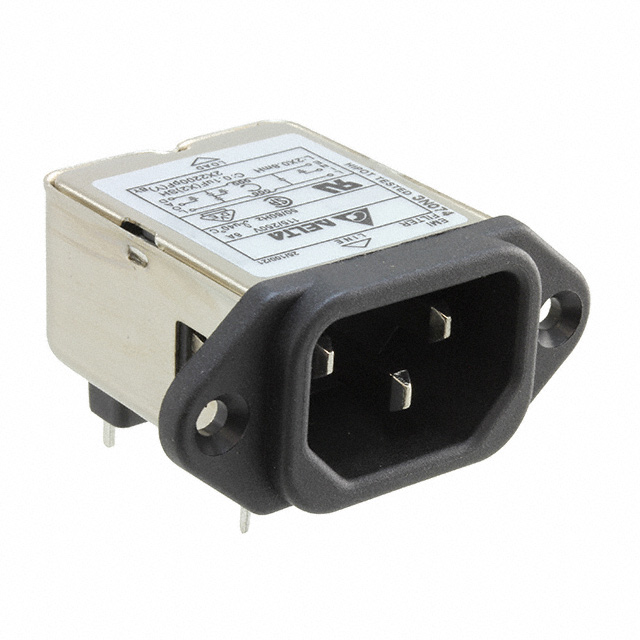

06ME3G
ActiveDelta Electronics
PWR ENT RCPT IEC320-C14 PNL SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
06ME3G
ActiveDelta Electronics
PWR ENT RCPT IEC320-C14 PNL SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 06ME3G |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 6 A |
| Current Rating - Filter | 6 A |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Mounting Type | Panel Mount, Flange, Through Hole, Right Angle |
| Panel Cutout Dimensions [x] | 30.5 mm |
| Panel Cutout Dimensions [y] | 22.86 mm |
| Termination | Solder |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 115 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.66 | |
| 10 | $ 4.80 | |||
| 25 | $ 4.50 | |||
| 50 | $ 4.29 | |||
| 240 | $ 4.01 | |||
Description
General part information
06ME Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
