SR30-10JF-7S(71)

Hirose Electric USA, Inc.

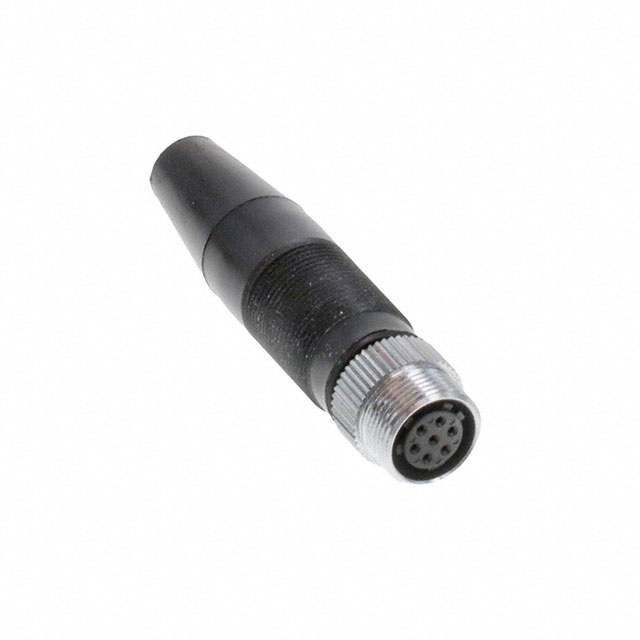

CONN JACK FMALE 7P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

SR30-10JF-7S(71)

Hirose Electric USA, Inc.

CONN JACK FMALE 7P SOLDER CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SR30-10JF-7S(71)

Applications	Radio
Backshell Material, Plating	Nickel, Brass
Color	Black, Silver
Connector Type	Female Sockets, Jack
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	118.1 µin
Contact Finish Thickness - Mating	3 µm
Contact Material	Phosphor Bronze
Features	Backshell, Strain Relief, Clamp
Insert Material	Polyacetal
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	10
Shielding	Unshielded
Voltage Rating	100 VAC, 140 VDC

SR30 Series

Part	For Use With/Related Products	Accessory Type	Shell Size - Insert	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Insert Material	Backshell Material, Plating	Contact Material	Voltage Rating	Mounting Type	Shell Material	Number of Positions	Applications	Orientation	Connector Type	Shielding	Primary Material	Contact Finish - Mating	Shell Finish	Cable Opening [custom]	Cable Opening [custom]	Contact Finish Thickness - Mating	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening	Cable Opening
Hirose Electric USA, Inc. SR30-10RC1(71)	SR30 Series Receptacle	Cap (Cover) Dust	10
Hirose Electric USA, Inc. SR30-10JF-7S(71)			10	Black Silver	118.1 µin	3 µm	-10 °C	60 °C	Backshell Clamp Strain Relief	Polyacetal	Brass Nickel	Phosphor Bronze	100 VAC 140 VDC	Free Hanging (In-Line)	Brass	7	Radio	Keyed	Female Sockets Jack	Unshielded	Metal	Silver	Chrome
Hirose Electric USA, Inc. SR30-10PG-6P(32)			10	Black Silver	0.2 Ám		-10 °C	60 °C	Backshell Clamp Coupling Nut Strain Relief	Polyacetal	Brass Nickel	Brass	100 VAC 140 VDC	Free Hanging (In-Line)	Zinc Alloy	6	Radio	Keyed	Male Pins Plug	Unshielded	Metal	Gold	Nickel	0.205 in	5.2 mm	7.87 Áin
Hirose Electric USA, Inc. SR30-10R-7S
Hirose Electric USA, Inc. SR30-10PF-6P(32)			10	Black Silver	118.1 µin	3 µm	-10 °C	60 °C	Backshell Clamp Coupling Nut Strain Relief	Polyacetal	Brass Nickel	Brass	100 VAC 140 VDC	Free Hanging (In-Line)	Zinc Alloy	6	Radio	Keyed	Male Pins Plug	Unshielded	Metal	Silver	Nickel				5.5 mm	0.217 in
Hirose Electric USA, Inc. SR30-10PE-6P(32)			10	Black Silver	0.2 Ám		-10 °C	60 °C	Backshell Clamp Coupling Nut Strain Relief	Polyacetal	Brass Nickel	Brass	100 VAC 140 VDC	Free Hanging (In-Line)	Zinc Alloy	6	Radio	Keyed	Male Pins Plug	Unshielded	Metal	Gold	Nickel			7.87 Áin			4.3 mm	0.169 in
Hirose Electric USA, Inc. SR30-10RC(71)	SR30 Series Receptacle	Cap (Cover) Dust	10
Hirose Electric USA, Inc. SR30-10PM-6P(32)			10	Black Silver	0.2 Ám		-10 °C	60 °C		Polyacetal	Brass Nickel	Brass	100 VAC 140 VDC	Free Hanging (In-Line)	Zinc Alloy	6	Radio	Keyed	Male Pins Plug	Unshielded	Metal	Gold	Nickel	0.224 in	5.7 mm	7.87 Áin
Hirose Electric USA, Inc. SR30-10PF-7P
Hirose Electric USA, Inc. SR30-10PQ-6P(32)			10	Black Silver	0.2 Ám		-10 °C	60 °C	Backshell Clamp Coupling Nut Strain Relief	Polyacetal	Brass Nickel	Brass	100 VAC 140 VDC	Free Hanging (In-Line)	Zinc Alloy	6	Radio	Keyed	Male Pins Plug	Unshielded	Metal	Gold	Nickel			7.87 Áin			4.3 mm	0.169 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.45

Description

General part information

SR30 Series

7 Position Circular Connector Jack, Female Sockets Solder Cup
