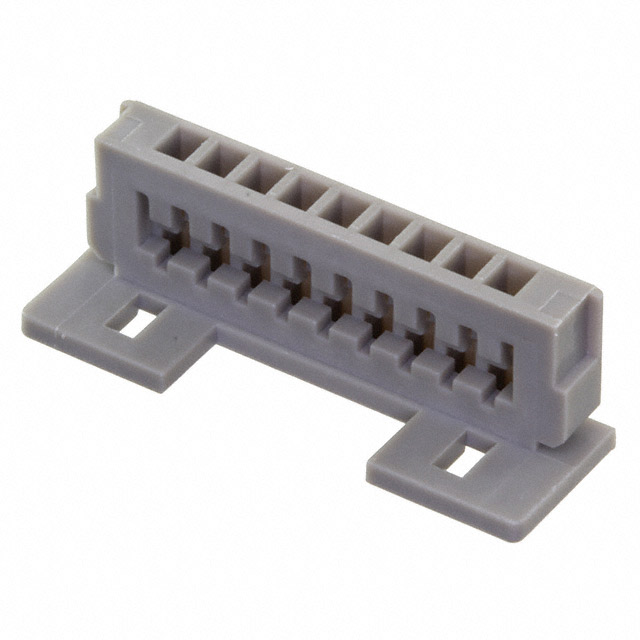

GT32-19DS-0.75CA

Active

Hirose Electric USA, Inc.

CONN SOCKET HSG 19POS 1.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GT32-19DS-0.75CA

Active

Hirose Electric USA, Inc.

CONN SOCKET HSG 19POS 1.50MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GT32-19DS-0.75CA

Color	Gray
Connector Type	Socket
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	19
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	1.5 mm
Pitch [x]	0.059 in

GT32 Series

Part	For Use With/Related Products	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Mounting Type	Note	Contact Termination	Insulation Material	Number of Rows	Color	Connector Type	Contact Type	Accessory Type	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Tool Method	Tool Type	Fastening Type	Contact Shape	Shrouding	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Style	Insulation Height	Insulation Height	Termination
Hirose Electric USA, Inc. GT32-19DP-HUB	GT32 Series	19
Hirose Electric USA, Inc. GT32-19DS-0.75CA		19	-40 °C	105 ░C	1.5 mm	0.059 in	Free Hanging (In-Line)	Contacts Not Included	Crimp	Polybutylene Terephthalate (PBT)	1	Gray	Socket	Female Socket
Hirose Electric USA, Inc. GT32-10S-SC	GT32 Series	10													Shield Plate
Hirose Electric USA, Inc. GT32-2428SCF									Crimp							24 AWG	28 AWG
Hirose Electric USA, Inc. GT32-10S-6/CR-MP(01)	Rectangular Contacts																	24 AWG	28 AWG	Automated	Applicator for Bench Press
Hirose Electric USA, Inc. GT32-4DS-HU(D)		4	-40 °C	105 ░C	1.5 mm	0.059 in	Free Hanging (In-Line)		Crimp	Polybutylene Terephthalate (PBT)	2	Gray	Receptacle	Female Socket								Latch Lock
Hirose Electric USA, Inc. GT32-4DS-HU(A)		4	-40 °C	105 ░C	1.5 mm	0.059 in	Free Hanging (In-Line)		Crimp	Polybutylene Terephthalate (PBT)	2	Gray	Receptacle	Female Socket								Latch Lock
Hirose Electric USA, Inc. GT32F-4DS-1.5C	GT32 Series	4
Hirose Electric USA, Inc. GT32-4DP-1.5H(10)		4					Through Hole				2		Header	Male Pin									Rectangular	Shrouded - 4 Wall	0.063 in	1.6 mm	0.03 in	0.75 mm	All	Board to Cable/Wire	0.619 in	15.73 mm	Solder
Hirose Electric USA, Inc. GT32-10S-HU	GT32 Series	10													Shroud

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.25
		1000	$ 0.24
		2500	$ 0.23
		5000	$ 0.22

Description

General part information

GT32 Series

19 Rectangular Connectors - Housings Socket Gray 0.059" (1.50mm)
