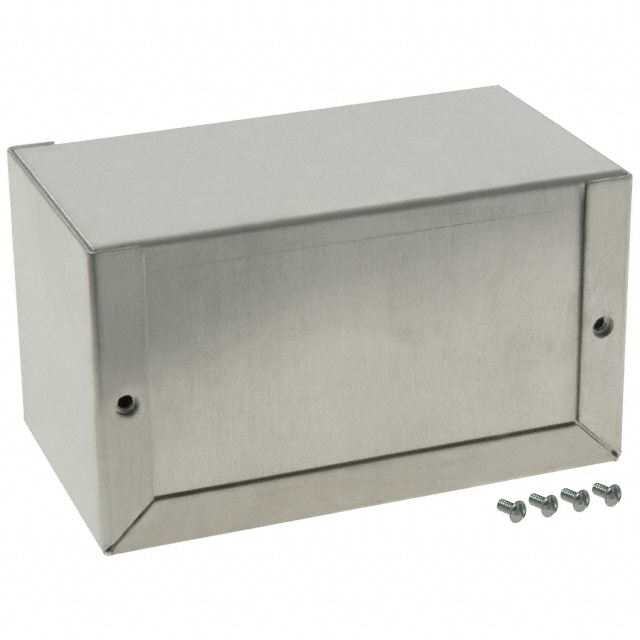

TF775 PLAIN
ActiveLMB Heeger Inc.
CHASSIS ALUM 4"L X 2.25"W
Deep-Dive with AI
Search across all available documentation for this part.
TF775 PLAIN
ActiveLMB Heeger Inc.
CHASSIS ALUM 4"L X 2.25"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TF775 PLAIN |
|---|---|
| Area (L x W) [custom] | 58.1 cm² |
| Area (L x W) [custom] | 9 in² |
| Color | Unpainted |
| Container Type | Chassis |
| Design | U Shaped Pieces |
| Height [z] | 2.25 in |
| Height [z] | 57.15 mm |
| Material | Metal, Aluminum |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [x] | 4 in |
| Size / Dimension [y] | 57.15 mm |
| Size / Dimension [y] | 2.25 in |
| Thickness | 0.04 in |
| Thickness | 1.02 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.99 | |
Description
General part information
TF775 Series
Chassis Metal, Aluminum Unpainted U Shaped Pieces 4.000" L x 2.250" W (101.60mm x 57.15mm) X 2.250" (57.15mm)
Documents
Technical documentation and resources
No documents available
