PSDH6060CCL1_T0_00001

Active

Panjit International Inc.

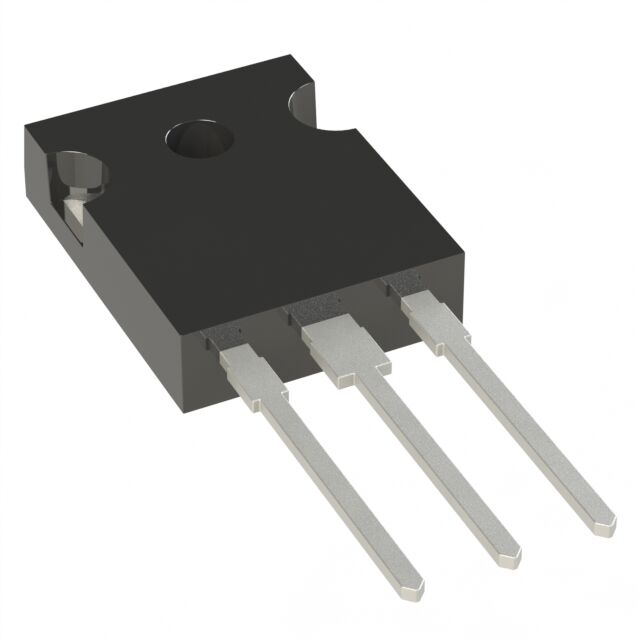

DIODE ARRAY GP 600V 30A TO-247AD

Search across all available documentation for this part.

Active

Panjit International Inc.

DIODE ARRAY GP 600V 30A TO-247AD

Technical Specifications

Parameters and characteristics for this part

Specification	PSDH6060CCL1_T0_00001

Current - Average Rectified (Io) (per Diode)	30 A
Current - Reverse Leakage @ Vr	250 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-247-3
Reverse Recovery Time (trr)	115 ns
Speed	200 mA, 500 ns
Supplier Device Package	TO-247AD
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.8 V

Part	Package / Case	Diode Configuration	Supplier Device Package	Current - Reverse Leakage @ Vr	Technology	Mounting Type	Reverse Recovery Time (trr)	Current - Average Rectified (Io) (per Diode)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)
Panjit International Inc. PSDH6060CCS1_T0_00001	TO-247-3	1 Pair Common Cathode	TO-247AD	250 µA	Standard	Through Hole	70 ns	30 A	150 °C	-55 °C	2.3 V	200 mA 500 ns	600 V
Panjit International Inc. PSDH6060CCL1_T0_00001	TO-247-3	1 Pair Common Cathode	TO-247AD	250 µA	Standard	Through Hole	115 ns	30 A	150 °C	-55 °C	1.8 V	200 mA 500 ns	600 V
Panjit International Inc. PSDH6060S1_T0_00001	TO-247-2		TO-247AD-2	250 µA	Standard	Through Hole	85 ns		150 °C	-55 °C	2.3 V	200 mA 500 ns	600 V	60 A
Panjit International Inc. PSDH6060L1_T0_00001	TO-247-2		TO-247AD-2	250 µA	Standard	Through Hole	205 ns		150 °C	-55 °C	1.75 V	200 mA 500 ns	600 V	60 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 600 V 30A Through Hole TO-247-3
