1532259-2

Active

TE Connectivity Aerospace, Defense and Marine

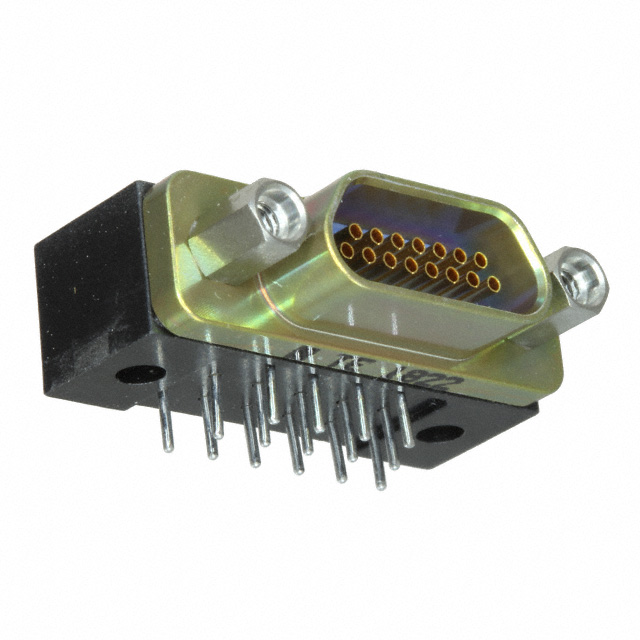

CONN MICRO-D RCPT 15POS R/A SLDR

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN MICRO-D RCPT 15POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	1532259-2

Backset Spacing	3.3 mm
Backset Spacing	0.13 in
Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Type	Signal
Dielectric Material	Liquid Crystal Polymer (LCP)
Flange Feature	Mating Side, Female Screwlock (2-56)
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	2
Shell Material, Finish	Yellow Chromate Plated Cadmium, Aluminum
Shell Size, Connector Layout [x]	0.05
Shell Size, Connector Layout [y]	0.1
Termination	Solder

Part	Mounting Type	Backset Spacing	Backset Spacing	Shell Material, Finish	Number of Positions	Connector Type	Termination	Connector Style	Dielectric Material	Contact Type	Contact Finish	Number of Rows	Flange Feature	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Contact Material
TE Connectivity Aerospace, Defense and Marine 1532259-2	Through Hole Right Angle	3.3 mm	0.13 in	Aluminum Yellow Chromate Plated Cadmium	15	Receptacle Female Sockets	Solder	D-Type Micro-D	Liquid Crystal Polymer (LCP)	Signal	Gold	2	Female Screwlock (2-56) Mating Side	0.05	0.1	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15 Position D-Type, Micro-D Receptacle, Female Sockets Connector
