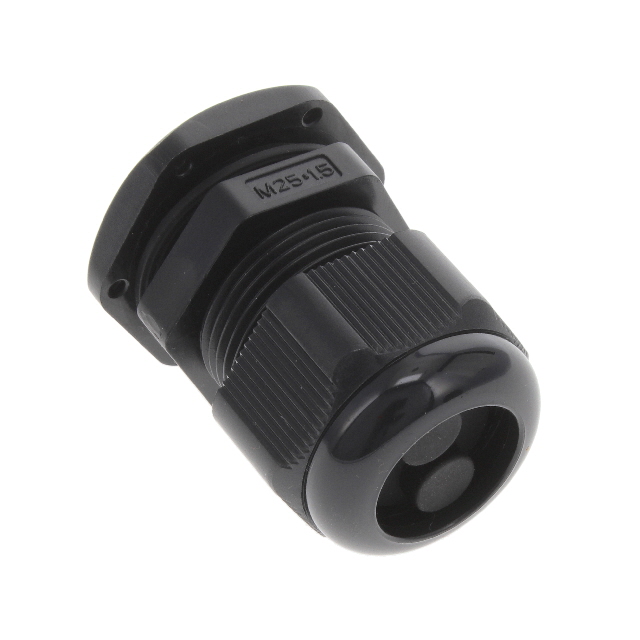

CGM25N24X2

Active

Switchcraft Inc.

CABLE GLAND 3-6MM M25 THERMOPL

Search across all available documentation for this part.

Active

Switchcraft Inc.

CABLE GLAND 3-6MM M25 THERMOPL

Technical Specifications

Parameters and characteristics for this part

Specification	CGM25N24X2

Color	Black
Includes	O-Ring, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Thermoplastic
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.236 in
Outside Cable Diameter (Max) [Max] [diameter]	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	3 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in
Thread Length	7.87 mm
Thread Length	0.31 in
Thread Size	M25x1.5
Type	Cable Gland

Part	Ingress Protection	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Includes	Type	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Thread Size	Material	Operating Temperature [Max]	Operating Temperature [Min]
Switchcraft Inc. CGM25N24X2	IP68 - Dust Tight Waterproof	3 mm	0.118 in	O-Ring Seal	Cable Gland	Black	0.236 in	6 mm	7.87 mm	0.31 in	M25x1.5	Thermoplastic	100 °C	-40 °C
Switchcraft Inc. CGM25N24X3	IP68 - Dust Tight Waterproof	3 mm	0.118 in	O-Ring Seal	Cable Gland	Black	0.236 in	6 mm	7.87 mm	0.31 in	M25x1.5	Thermoplastic	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Thermoplastic M25x1.5 Black
