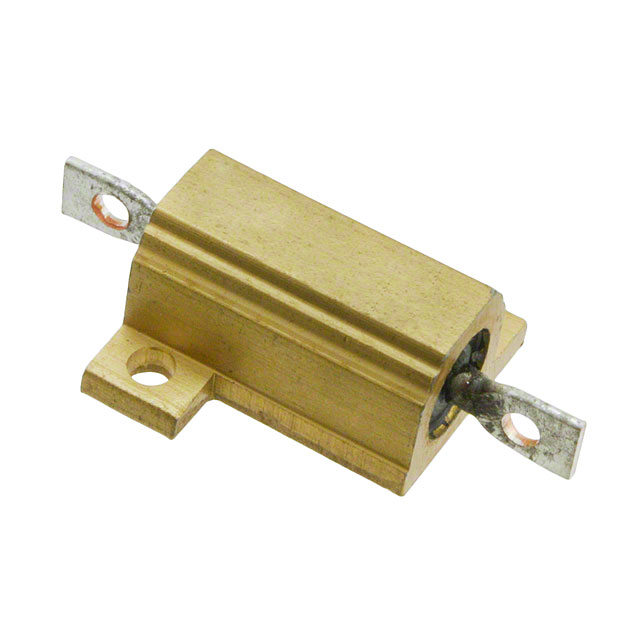

1676814-3
ObsoleteTE Connectivity Passive Product
RES CHAS MNT 1 OHM 1% 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1676814-3
ObsoleteTE Connectivity Passive Product
RES CHAS MNT 1 OHM 1% 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1676814-3 |
|---|---|
| Coating, Housing Type | Aluminum |
| Composition | Wirewound |
| Height - Seated (Max) [Max] | 0.354 in |
| Height - Seated (Max) [Max] | 9 mm |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Power (Watts) | 10 W |
| Resistance | 1 Ohms |
| Size / Dimension [x] | 17 mm |
| Size / Dimension [x] | 0.669 " |
| Size / Dimension [y] | 17 mm |
| Size / Dimension [y] | 0.669 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1676814 Series
1 Ohms ±1% 10W Wirewound Chassis Mount Resistor
