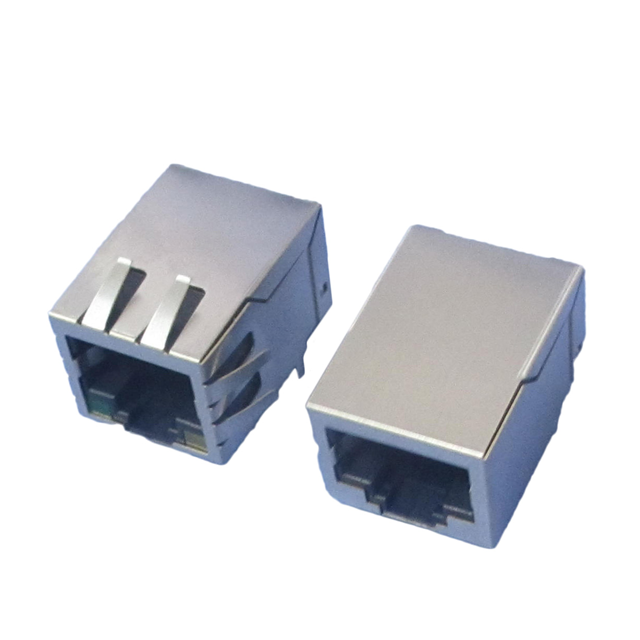

12F10EGYDSNW2NL

Active

Yuan Dean

CONN RJ45 JACK W/MAG

Search across all available documentation for this part.

Active

Yuan Dean

CONN RJ45 JACK W/MAG

Technical Specifications

Parameters and characteristics for this part

Specification	12F10EGYDSNW2NL

Applications	10 Base-T, AutoMDIX
Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.152 Ám
Contact Finish Thickness	6 Áin
Contact Material	Phosphor Bronze
Features	Solder Retention
Height Above Board	13.84 mm
Height Above Board	0.545 in
Housing Material	Polyamide (PA), Nylon, Glass Filled
LED Color	Yellow - Green
Mounting Type	Through Hole
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Brass, Nickel Coated
Shielding	Shielded
Tab Direction	Down
Termination	Solder

Part	Orientation	LED Color	Connector Type	Contact Material	Tab Direction	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Termination	Shield Material	Contact Finish	Housing Material	Shielding	Number of Rows	Height Above Board	Height Above Board
Yuan Dean 12F10EGYDSNW2NL	90 °	Yellow - Green	Jack	Phosphor Bronze	Down	Through Hole	0.152 Ám	6 Áin	Solder Retention	1	70 °C	0 °C	10 Base-T AutoMDIX	Solder	Brass Nickel Coated	Gold	Polyamide (PA) Nylon Glass Filled	Shielded	1	13.84 mm	0.545 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	60	$ 13.75

General part information

1 Port JackThrough Hole 10 Base-T, AutoMDIX
