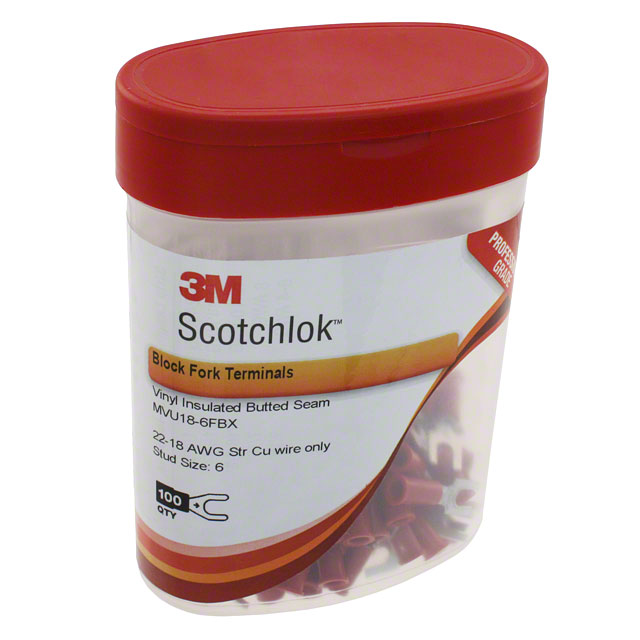

MVU18-6FBX-BOTTLE

Active

3M (TC)

CONN SPADE TERM 18-22AWG 6 100PC

Deep-Dive with AI

Search across all available documentation for this part.

MVU18-6FBX-BOTTLE

Active

3M (TC)

CONN SPADE TERM 18-22AWG 6 100PC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MVU18-6FBX-BOTTLE

Color	Red
Contact Finish	Tin
Contact Material	ETP, Copper
Features	Butted Seam
Insulation	Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall [x]	21.59 mm
Length - Overall [x]	0.85 "
Length - Ring Center to Termination [x]	0.25 in
Length - Ring Center to Termination [x]	6.35 mm
Length - Termination [x]	0.45 in
Length - Termination [x]	11.43 mm
Material - Insulation	Vinyl
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

MVU18 Series

Part	Length - Overall [x]	Length - Overall [x]	Termination	Length - Termination [x]	Length - Termination [x]	Material - Insulation	Stud/Tab Size	Color	Insulation Diameter	Insulation Diameter [diameter]	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Features	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Insulation	Terminal Type	Contact Material	Contact Finish	Length - Pin [x]	Length - Pin [x]	Insulation Diameter	Length - Overall	Length - Overall	Pin Diameter [diameter]	Pin Diameter [diameter]	Width - Outer Edges [y]	Width - Outer Edges [y]	Thickness	Thickness	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]	Length - Barrel [x]	Length - Barrel [x]	Number of Wire Entries	Tab Width	Tab Width	Tab Thickness	Tab Thickness	Gender
3M (TC) MVU18-6FBX-BOTTLE	21.59 mm	0.85 "	Crimp	0.45 in	11.43 mm	Vinyl	6 Stud	Red	3.68 mm	0.145 "	Free Hanging (In-Line)	22 AWG	17.5 AWG	Butted Seam	0.25 in	6.35 mm	Insulated	Standard	Copper ETP	Tin
3M (TC) MVU18-47PK-A			Crimp			Vinyl		Red	0.15 in			22 AWG	17.5 AWG				Insulated		Copper	Tin	0.47 in	11.94 mm	3.81 mm	0.9 in	22.86 mm	1.91 mm	0.075 in
3M (TC) MVU18-14R/SX-BOTTLE			Crimp			Vinyl	0.25 Stud	Red	3.68 mm	0.145 "	Free Hanging (In-Line)	22 AWG	17.5 AWG				Insulated	Circular	Copper ETP	Tin								0.47 in	11.94 mm	0.03 in	0.76 mm
3M (TC) MVU18-4FB/SK	21.59 mm	0.85 "	Crimp	0.45 in	11.43 mm	Vinyl	4 Stud	Red	3.68 mm	0.145 "	Free Hanging (In-Line)	22 AWG	17.5 AWG	Butted Seam	0.25 in	6.35 mm	Insulated	Standard	Copper ETP	Tin								0.25 "	6.35 mm
3M (TC) MVU18-6R/SK	20.32 mm	0.8 in	Crimp			Vinyl	6 Stud	Red	3.68 mm	0.145 "	Free Hanging (In-Line)	22 AWG	17.5 AWG				Insulated	Circular	Copper ETP	Tin								0.25 "	6.35 mm	0.03 in	0.76 mm
3M (TC) MVU18-47PX-A-BOTTLE			Crimp			Vinyl		Red	0.15 in			22 AWG	17.5 AWG				Insulated		Copper	Tin	0.47 in	11.94 mm	3.81 mm	0.9 in	22.86 mm	1.91 mm	0.075 in
3M (TC) MVU18-6FBK	21.59 mm	0.85 "	Crimp	0.45 in	11.43 mm	Vinyl	6 Stud	Red	3.68 mm	0.145 "	Free Hanging (In-Line)	22 AWG	17.5 AWG	Butted Seam	0.25 in	6.35 mm	Insulated	Standard	Copper ETP	Tin
3M (TC) MVU18-156DMK-A	21.59 mm	0.85 "	Crimp			Vinyl		Red	3.68 mm	0.145 "		22 AWG	17.5 AWG				Non-Mating End Insulated	Male Pin (Plug)														3.96 mm	0.156 in	0.19 in	4.83 mm
3M (TC) MVU18BCK			Crimp					Red				22 AWG	17.5 AWG				Fully Insulated	Butt Splice Individual Openings Inline																		2
3M (TC) MVU18-250DMX-BOTTLE		0.93 in	Crimp					Red	3.68 mm	0.145 "	Free Hanging (In-Line)	22 AWG	17.5 AWG	Butted Seam			Non-Mating End Insulated	Standard	Copper ETP	Tin					23.62 mm												6.35 mm	0.25 in	0.032 in	0.81 mm	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.08
		10	$ 35.10
		25	$ 33.58
		50	$ 32.50
		100	$ 31.41
		250	$ 29.68

Description

General part information

MVU18 Series

Red 6 Stud Spade Terminal Connector Crimp 18-22 AWG

Documents

Technical documentation and resources

No documents available
