012528WF018

Active

Essentra Access Solutions

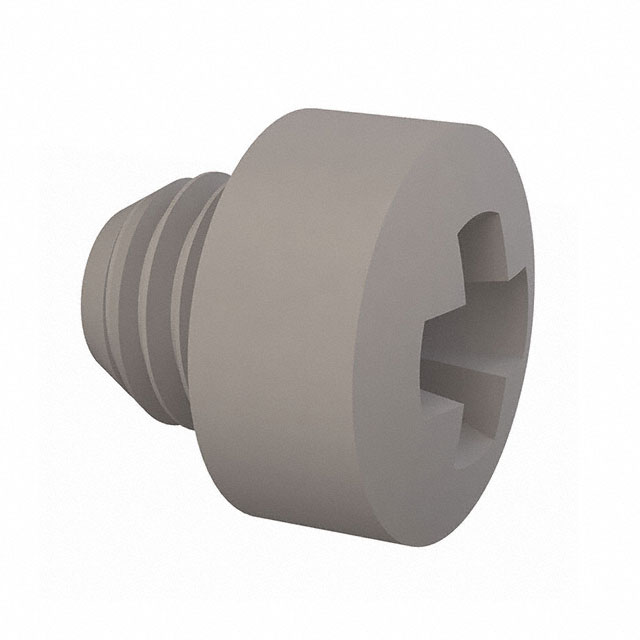

MACH SCREW PAN PHILLIPS 1/4"-28

Search across all available documentation for this part.

Active

Essentra Access Solutions

MACH SCREW PAN PHILLIPS 1/4"-28

Technical Specifications

Parameters and characteristics for this part

Part	Type	Length - Below Head [x]	Length - Below Head [x]	Material	Screw Head Type	Drive Type	Thread Size	Length - Below Head	Length - Below Head	Length - Below Head	Length - Overall [x]	Length - Overall [x]	Length - Overall	Length - Overall
Essentra Access Solutions 012528WF018	Machine Screw	4.76 mm	0.188 in	Nylon	Pan Head	Phillips	1/4"-28
Essentra Access Solutions 012528WF025	Machine Screw			Nylon	Pan Head	Phillips	1/4"-28	6.35 mm	0.25 in	0.25 in	16.71 mm	0.658 in
Essentra Access Solutions 012528WF075	Machine Screw			Nylon	Pan Head	Phillips	1/4"-28	19.05 mm	0.75 "	0.75 "	29.41 mm	1.158 in
Essentra Access Solutions 012528WF062	Machine Screw			Nylon	Pan Head	Phillips	1/4"-28	15.88 mm	0.625 in	0.625 in			26.24 mm	1.033 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.07

General part information

1/4"-28 Pan Head Machine Screw Phillips Drive Nylon

Technical documentation and resources

No documents available
