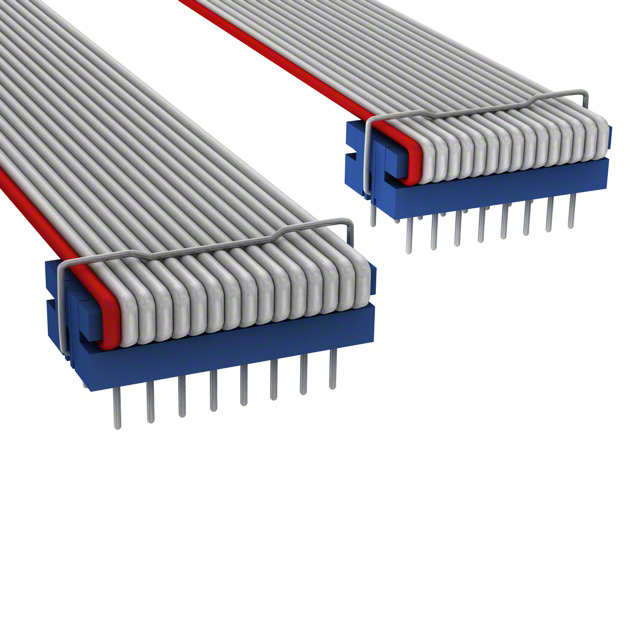

C0RRS-1636G

Active

CW Industries

DIP CABLE - CDR16S/AE16G/CDR16S

Search across all available documentation for this part.

Active

CW Industries

DIP CABLE - CDR16S/AE16G/CDR16S

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Connector Type	Usage	Features	Contact Finish	Cable Termination	Shielding	Number of Rows	Number of Positions	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Color	Length	Length	Length	Number of Positions
CW Industries C0RRS-1636G	2.54 µm	100 µin	0.1 in	2.54 mm	DIP to DIP Reversed	Board In Socket (0.3")	Strain Relief	Tin	IDC	Unshielded	2	16	3 ft	914.4 mm	0.05 "	1.27 mm
CW Industries C0RRS-1636M	2.54 µm	100 µin	0.1 in	2.54 mm	DIP to DIP Reversed	Board In Socket (0.3")	Strain Relief	Tin	IDC	Unshielded	2	16	3 ft	914.4 mm	0.05 "	1.27 mm	Multiple Ribbon
CW Industries C0RRS-1606G	2.54 µm	100 µin	0.1 in	2.54 mm	DIP to DIP Reversed	Board In Socket (0.3")	Strain Relief	Tin	IDC	Unshielded	2	16			0.05 "	1.27 mm		152.4 mm	6 "	0.5 '
CW Industries C0RRS-1406M	2.54 µm	100 µin	0.1 in	2.54 mm	DIP to DIP Reversed	Board In Socket (0.3")	Strain Relief	Tin	IDC	Unshielded	2				0.05 "	1.27 mm	Multiple Ribbon	152.4 mm	6 "	0.5 '	14
CW Industries C0RRS-1418M	2.54 µm	100 µin	0.1 in	2.54 mm	DIP to DIP Reversed	Board In Socket (0.3")	Strain Relief	Tin	IDC	Unshielded	2		1.5 ft	457.2 mm	0.05 "	1.27 mm	Multiple Ribbon				14
CW Industries C0RRS-1606M	2.54 µm	100 µin	0.1 in	2.54 mm	DIP to DIP Reversed	Board In Socket (0.3")	Strain Relief	Tin	IDC	Unshielded	2	16			0.05 "	1.27 mm	Multiple Ribbon	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Cable Assembly Rectangular DIP to DIP, Reversed 3.00' (914.40mm)
