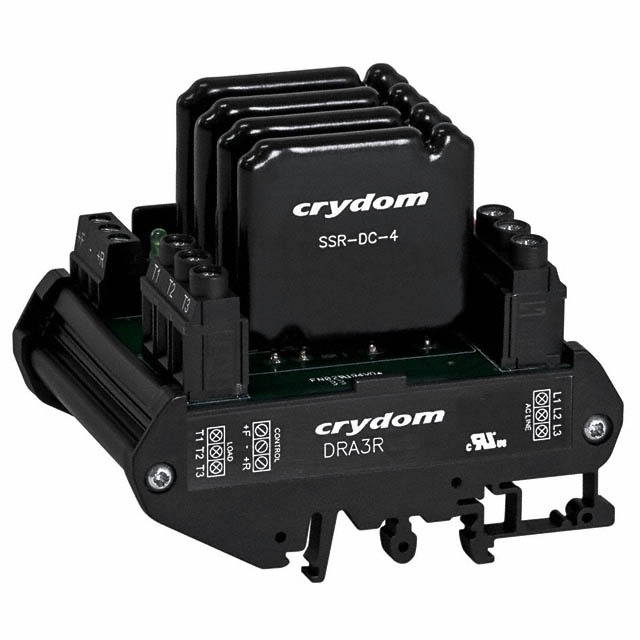

DRA3R48E2

Active

Sensata-Crydom

SSR RELAY 3PST-NO 2.4A 48-510V

Search across all available documentation for this part.

Active

Sensata-Crydom

SSR RELAY 3PST-NO 2.4A 48-510V

Technical Specifications

Parameters and characteristics for this part

Specification	DRA3R48E2

Control / Drive Type	Reversible, Motor Starter
Current - Output	2.4 A
For Use With/Related Products	DRA Series
Motor Type	AC Motor
Mounting Type	DIN Rail
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Type	Module
Voltage - Load [Max]	510 V
Voltage - Load [Min]	48 V
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	18 V

Part	Control / Drive Type	Voltage - Load [Max]	Voltage - Load [Min]	Mounting Type	Current - Output	Motor Type	Type	For Use With/Related Products	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]
Sensata-Crydom DRA3R48E2	Motor Starter Reversible	510 V	48 V	DIN Rail	2.4 A	AC Motor	Module	DRA Series	-10 °C	60 °C	18 V	28 V
Sensata-Crydom DRA3R48E4	Reversing Relay						Module		-10 °C	60 °C
Sensata-Crydom DRA3R48D4	Reversing Relay						Module		-10 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 177.68
