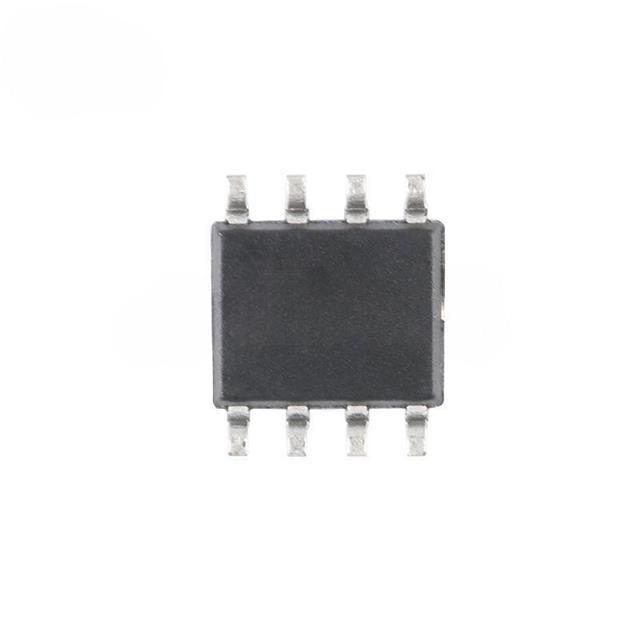

LM193DR

Active

UMW

IC COMPARATOR 2 GEN PUR 8SOP

Search across all available documentation for this part.

Active

UMW

IC COMPARATOR 2 GEN PUR 8SOP

Technical Specifications

Parameters and characteristics for this part

Specification	LM193DR

Current - Input Bias (Max) [Max]	0.25 µA
Current - Output (Typ)	16 mA
Current - Quiescent (Max) [Max]	1 mA
Mounting Type	Surface Mount
Number of Elements	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Output Type	Open-Collector, Rail-to-Rail
Package / Case	8-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Supplier Device Package	8-SOP
Type	General Purpose
Voltage - Input Offset (Max) [Max]	5 mV
Voltage - Supply, Single/Dual (±) [Max]	16 V, 32 V
Voltage - Supply, Single/Dual (±) [Min]	-1 V, 2 V

Part	Supplier Device Package	Number of Elements	Mounting Type	Package / Case	Package / Case [y]	Package / Case [x]	Current - Input Bias (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Quiescent (Max) [Max]	Output Type	Current - Output (Typ)	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Input Offset (Max) [Max]	Type
UMW LM193DR	8-SOP	2	Surface Mount	8-SOIC	3.9 mm	0.154 in	0.25 µA	-55 °C	125 °C	1 mA	Open-Collector Rail-to-Rail	16 mA	16 V 32 V	-1 V 2 V	5 mV	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Comparator General Purpose Open-Collector, Rail-to-Rail 8-SOP
