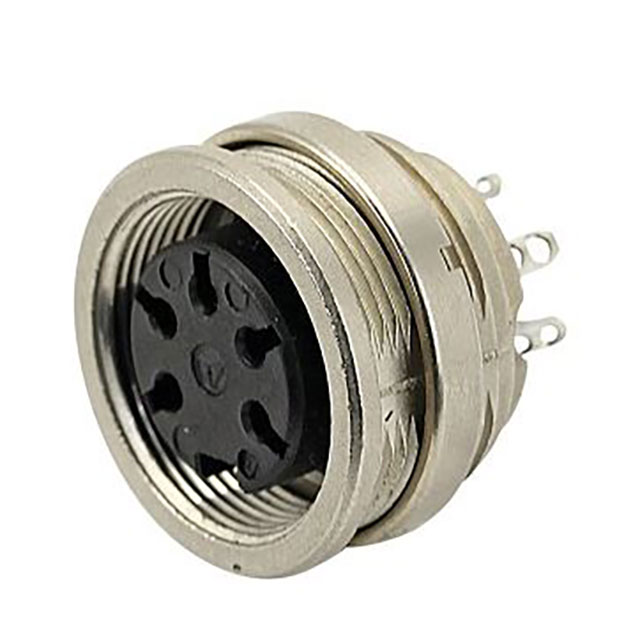

C091 11N107 000 2

Obsolete

Amphenol Tuchel Industrial

CONN RCPT HSNG FMALE 7POS PNL MT

Search across all available documentation for this part.

Obsolete

Amphenol Tuchel Industrial

CONN RCPT HSNG FMALE 7POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	C091 11N107 000 2

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP69K, IP65, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-7B
Shielding	Shielded
Type	For Female Sockets

Part	Mounting Feature	Orientation	Contact Type	Number of Positions	Shielding	Shell Size - Insert	Ingress Protection	Type	Insert Material	Shell Finish	Material Flammability Rating	Contact Size	Shell Material	Note	Housing Color	Contact Shape	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol Tuchel Industrial C091 11N107 000 2	Bulkhead - Rear Side Nut	Keyed	Crimp	7	Shielded	M16-7B	IP65 IP67 IP69K	For Female Sockets	Thermoplastic	Nickel	UL94 V-0	1.5 mm	Die Cast	Contacts Not Included	Silver	Circular	Receptacle Housing	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7 Position Circular Connector Receptacle Housing Panel Mount
